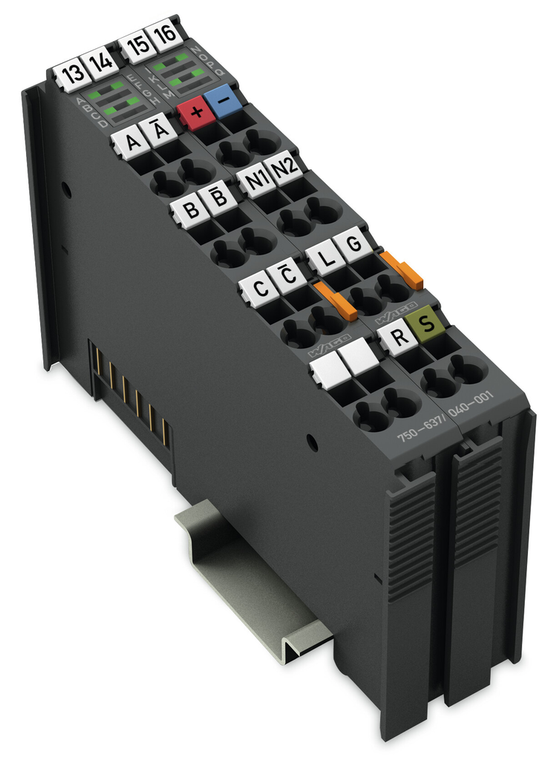

Incremental encoder interface; 24 VDC; Differential input; 32 bits; Extreme.
The WAGO 750 XTR series incremental encoder interface is designed for extended temperature ranges and features a 24Vdc differential 32-bit input. It includes one digital input for A, not-A, B, not-B, C, and not-C encoder signals, operating at 250kHz with a 5Vdc supply voltage provided by the system. The device uses spring CAGE CLAMP connections, mounts on a DIN-35 rail with a 24mm width, and has an IP20 protection rating. It is suitable for ambient temperatures ranging from -40°C to +70°C and is equivalent to the model number 750637040001.
- color:
- Dark gray
- commands:
- Reading, setting, activating
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- counter depth:
- 32 bits
- country of origin sales organisation germany:
- DE
- data width:
- 1 x 32-bit data 2 x 8-bit control/status
- depth:
- 67.8 mm / 2.669 inch
- depth from upper edge of din rail:
- 60.6 mm / 2.386 inch
- emc emission of interference:
- Per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5
- emc immunity to interference:
- Per EN 61000-6-1, -2: EN 61131-2: marine applications: EN 50121-3-2: EN 50121-4, -5: EN 60255-26: EN 60870-2-1: EN 61850-3: IEC 61000-6-5: IEEE 1613: VDEW: 1994
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.25 2.5 mm / 24 14 AWG
- fire load:
- 0.273 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- input current typ:
- Latch 7 mA, Gate 7 mA, Ref. 7 mA
- limit frequency:
- 250 kHz
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 5000 m (0.5 K/100 m): 5000 m (max.)
- output current:
- Short-circuit-protected
- output current per channel:
- 0.5 A
- output voltage:
- 24 VDC
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 110 mA
- power consumption field supply module with no external load:
- 35 mA
- protection type:
- IP20
- quadrature decoder:
- 4x evaluation
- rated surge voltage:
- 1 kV
- relative humidity with condensation:
- Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation)
- relative humidity without condensation:
- 0.95
- shock resistance:
- Per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks: 25g/6 ms/1,000 shocks), EN 50155, EN 61373
- solid conductor:
- 0.25 2.5 mm / 24 14 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage system:
- 5 VDC: via data contacts
- supply voltage transmitter:
- 24 VDC
- surrounding air temperature operation:
- -40 70 C
- surrounding air temperature storage:
- -40 85 C
- transmitter connection:
- A, A/, B, B/, C, C/
- vibration resistance:
- Per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155: EN 61373
- voltage range for signal 0:
- (UABC - UABC/): -30 +15 VDC: Latch, gate, ref.: -3 +5 VDC
- voltage range for signal 1:
- (UABC - UABC/): 15 30 VDC: Latch, gate, ref.: 15 30 VDC
- weight:
- 116.800 g
- width:
- 24 mm / 0.945 inch
- zero impulse latch:
- 32 bits
