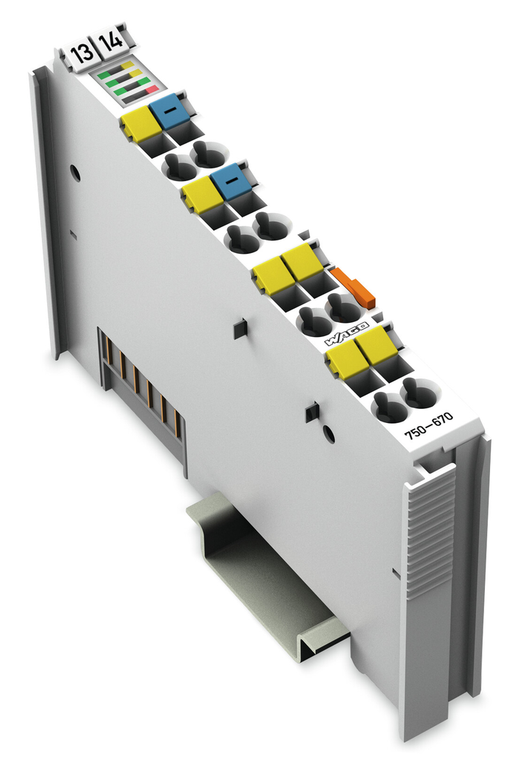

Stepper Controller; RS-422/24 VDC; 20 mA
- Pulse width modulation
- Frequency Generator
- Single-shot mode
The WAGO 750 series Stepper Motor Controller operates with an 18-32.5Vdc adjustable supply for field sensing devices and features RS-422 communication capability with a 5Vdc supply provided by the system. It includes Push-in spring CAGE CLAMP connections, is designed for DIN-35 rail mounting with a 12mm width, and has an IP20 protection rating. The controller is suitable for ambient temperatures ranging from 0°C to +55°C and is equivalent to model 750670.
- color:
- Light gray
- conformity marking:
- CE
- connection technology inputs outputs:
- 8 x CAGE CLAMP
- connection type 1:
- Inputs/outputs
- country of origin sales organisation germany:
- DE
- data width:
- 12-byte input/output
- depth:
- 67.8 mm / 2.669 inch
- depth from upper edge of din rail:
- 60.6 mm / 2.386 inch
- device specific:
- Operating modes: Individual positioning, reference run, jog, tip, command tables, PWM
- duty cycle:
- 50 % (in stepper motor mode)
- emc emission of interference:
- Per EN 61000-6-3
- emc immunity to interference:
- Per EN 61000-6-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fine stranded conductor:
- 0.08 2.5 mm / 28 14 AWG
- fire load:
- 1.050 MJ
- Absolute/relative positioning, setpoint change on the fly, rotary axis, etc.height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- input current typ:
- 2.8 mA
- input filter:
- 100 s, software filter can be connected
- isolation:
- 500 V system/field
- load type:
- RS-422, TTL, optocoupler
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of digital inputs:
- 2
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- number of outputs:
- 1 channel (2 differential outputs A1, A2, B1, B2)
- operating altitude:
- 0 2000 m
- output current:
- Short-circuit-protected
- output current per channel:
- 0.03 A
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- power consumption 5 v system supply:
- 98 mA
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- resolution:
- 15 bits + 16 bit prescaler
- shock resistance:
- 15g per IEC 60068-2-27
- signal frequency max:
- 500000 Hz
- signal frequency min:
- 0.0002 Hz
- signal voltage:
- 5 VDC (internal), 5 24 VDC (external)
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- stepper resolution:
- 23 bits + sign bit
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC (-25 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- vibration resistance:
- Per IEC 60068-2-6
- voltage range for signal 0:
- 3 +5 VDC
- voltage range for signal 1:
- 15 30 VDC
- weight:
- 49.931 g
- width:
- 12 mm / 0.472 inch
