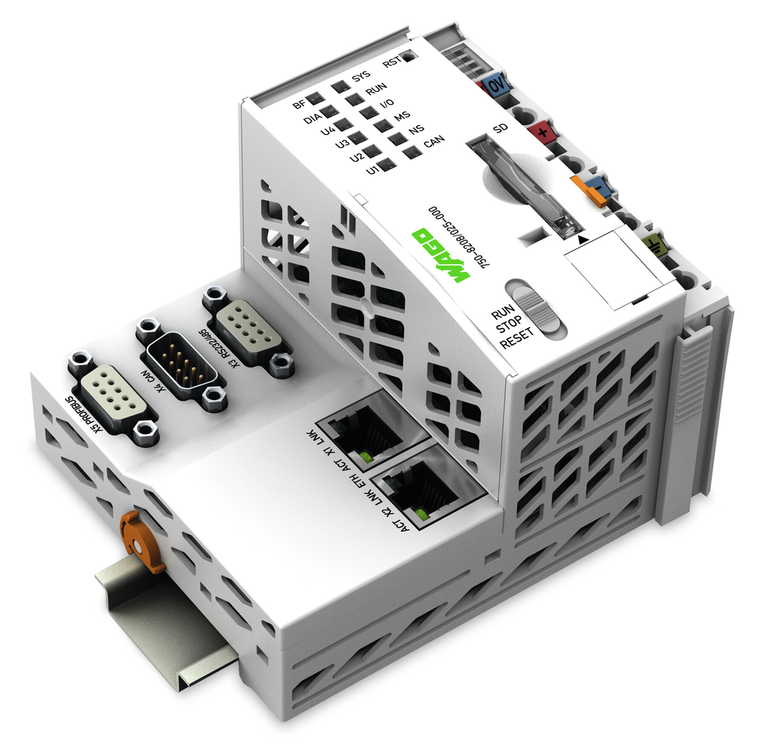

WAGO 750-8208/025-000
- SKU:
- 750-8208/025-000
- Condition:
- New
Description
Controller PFC200; 2 x ETHERNET, RS-232/-485, CAN, CANopen, PROFIBUS-Master; Ext. Temperature; light gray
View AllClose
Additional Information
baud rate: |
ETHERNET: 10/100 Mbit/s |
baud rate communication fieldbus 1: |
10/100 Mbit/s |
color: |
Light gray |
communication: |
PROFIBUS DP Master || CANopen || Modbus (TCP, UDP) || ETHERNET || Modbus« RTU || RS-232 serial interface || RS-485 serial interface || MQTT |
configuration options: |
WAGO-I/O-CHECK || Web-Based Management |
conformity marking: |
CE |
connection technology communication fieldbus: |
PROFIBUS: 1 x D-sub 9 socket: CANopen: 1 x D-sub 9 plug: Modbus TCP/UDP: 2 x RJ-45: Modbus RTU: 1 x D-sub 9 socket: RS-232 serial interface: 1 x D-sub 9 socket: RS-485 serial interface: 1 x D-sub 9 socket |
connection technology device configuration: |
1 x Male connector: 4-pole |
connection technology field supply: |
6 x CAGE CLAMP« |
connection technology system supply: |
2 x CAGE CLAMP« |
connection type 1: |
System/field supply |
country of origin sales organisation germany: |
DE |
cpu: |
Cortex A8: 600 MHz |
data memory: |
64 MB |
depth: |
71.9 mm / 2.831 inch |
depth from upper edge of din rail: |
64.7 mm / 2.547 inch |
emc emission of interference: |
Per EN 61000-6-3, marine applications |
emc immunity to interference: |
Per EN 61000-6-2, marine applications |
ethernet protocols: |
DHCP || DNS || NTP || FTP || FTPS || SNMP || HTTP || HTTPS || SSH |
exposure to pollutants: |
Per IEC 60068-2-42 and IEC 60068-2-43 |
fine stranded conductor: |
0.08 ª 2.5 mm / 28 ª 14 AWG |
fire load: |
2.705 MJ |
height: |
100 mm / 3.937 inch |
housing material: |
Polycarbonate: polyamide 6.6 |
indicators: |
LED (SYS, RUN, I/O, CAN, BF, DIA, U1 ª U4) red/green/orange: Status system, program, internal data bus, CANopen, PROFIBUS, PROFIBUS diagnostics, status programmable by user (can be used via CODESYS library): LED (A, B) green: System power supply s |
input and output can process image max: |
2000 Worte/2000 Worte |
input and output internal process image max: |
1000 Worte/1000 Worte |
input and output modbus process image max: |
CODESYS V2: 1000 Worte/1000 Worte |
input and output profibus process image max: |
2500 Worte/2500 Worte |
input current typ at nominal load 24 v: |
670 mA |
internal memory flash: |
256 MB |
isolation: |
500 V system/field |
main memory ram: |
256 MB |
memory card slot: |
Push-push mechanism: Cover lid (sealable) |
memory card type: |
SD and SDHC up to 32 GB (all guaranteed properties only valid with WAGO 758-879/000-001 Memory Card) |
mounting position: |
Any |
mounting type: |
DIN-35 rail |
non volatile hardware memory: |
128 kB |
non volatile software memory: |
128 kB |
number of modules per node max: |
250 |
number of modules without a bus extension max: |
64 |
number of outgoing power jumper contacts: |
3 |
packaging type: |
Box |
permissible h2s contaminant concentration at a relative humidity 75: |
10 ppm |
permissible so2 contaminant concentration at a relative humidity 75: |
25 ppm |
pollution degree 5: |
2 per IEC 61131-2 |
program memory: |
16 MB |
programming environment: |
WAGO-I/O-PRO V2.3 (based on CODESYS V2.3) |
programming languages per iec 61131 3: |
Instruction List (IL) || Ladder Diagram (LD) || Function Block Diagram (FBD), Continuous Function Chart (CFC) || Structured Text (ST) || Sequential Function Chart (SFC) |
protection type: |
IP20 |
relative humidity with condensation: |
Short-term condensation per Class 3K6/IEC EN 60721-3-3 and E-DIN 40046-721-3, accounting for a temperature range of ª20 to +60 C (except for wind-driven precipitation, water and ice formation) |
relative humidity without condensation: |
0.95 |
shock resistance: |
15g per IEC 60068-2-27 |
solid conductor: |
0.08 ª 2.5 mm / 28 ª 14 AWG |
strip length: |
8 ª 9 mm / 0.31 ª 0.35 inch |
supply voltage field: |
24 VDC (-25 ª +30 %): via power jumper contacts |
supply voltage system: |
24 VDC (-25 ª +30 %): via pluggable connector (CAGE CLAMP« connection) |
surrounding air temperature operation: |
-20 ª 60 C |
surrounding air temperature storage: |
-40 ª 85 C |
total current system supply: |
1700 mA |
transmission medium communication fieldbus: |
ETHERNET: Twisted Pair S-UTP: 100 : Cat. 5: 100 m maximum cable length |
vibration resistance: |
Per IEC 60068-2-6 |
visualization: |
Web Visu |
weight: |
262.300 g |
width: |
112 mm / 4.409 inch |
