Wago

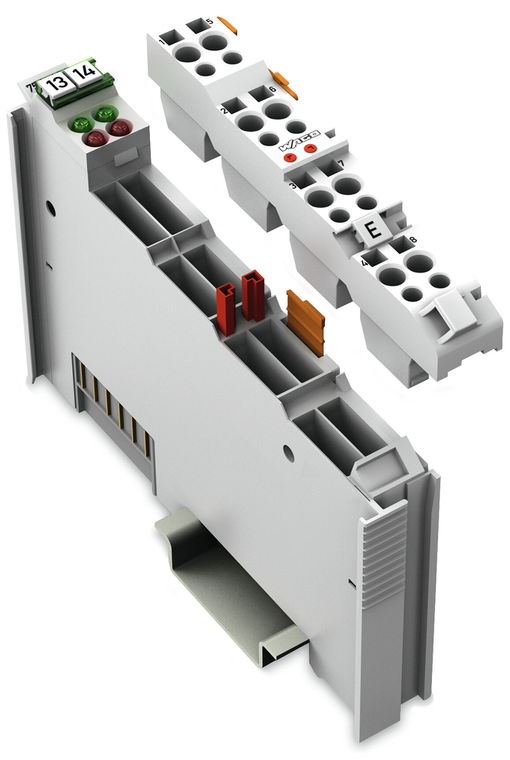

WAGO 753-479

SKU:

753-479

UPC:

MPN:

753-479

Condition:

New

admissible continuous overload:

60 V

color:

Light gray

conformity marking:

CE

connection technology inputs outputs:

8 x CAGE CLAMP

connection type 1:

Inputs/outputs

conversion method:

SAR (Successive Approximation Register)

country of origin sales organisation germany:

DE

crosstalk attenuation:

80 dB

data width:

2 x 16-bit data: 2 x 8-bit control/status (optional)

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4, marine applications

emc immunity to interference:

Per EN 61000-6-2, marine applications

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.779 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

input filter:

Low pass (1st order), fG = 5 kHz

internal resistance:

1000 k

isolation:

500 V system/field or channel/channel

measured value acquisition:

Time synchronous within the module

measurement error deviation max from the upper range value:

0.0005

measurement error over entire temperature range:

¤ 0.4 %

measurement error reference temperature:

25 C

measurement range overflow underflow:

Status byte and LED

monotonicity without error code:

Yes

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

note:

Pluggable connectors and coding fingers (753 Series) are not included.

number of analog inputs:

2

operating altitude:

0 2000 m

operating mode:

Continuously sampling (default)

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

100 mA

protection:

RC circuit

protection type:

IP20

relative humidity without condensation:

0.95

resolution bit:

14 bits

sampling delay channel channel:

1 s

sampling delay module:

1 ms

sampling duration:

5 s

sampling repetition time:

1 ms

sensor connection:

2 x (2-wire)

shock resistance:

15g per IEC 60068-2-27

signal characteristic:

Differential

signal type:

Voltage

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

temperature error max of the upper range value:

0.01 %/K

total number of channels module:

2

value of the lsb least significant bit:

1.2 mV

vibration resistance:

4g per IEC 60068-2-6

voltage signal type:

-10 +10 VDC

weight:

42.100 g

width:

12 mm / 0.472 inch

wiring interface:

Pluggable
