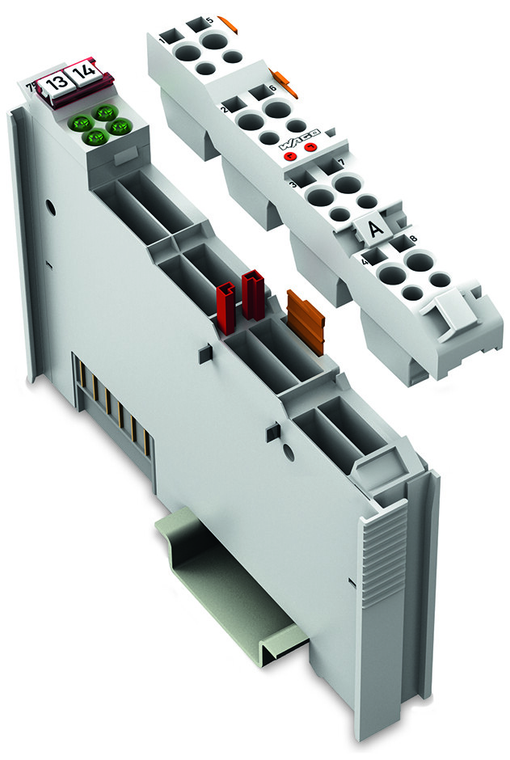

WAGO 753-531/000-800
- SKU:
- 753-531/000-800
- Condition:
- New
Additional Information
actuator connection: |
4 x (2-wire) |
conformity marking: |
CE |
connection technology inputs outputs: |
8 x CAGE CLAMP« |
connection type 1: |
Inputs/outputs |
country of origin sales organisation germany: |
DE |
depth: |
69.8 mm / 2.748 inch |
depth from upper edge of din rail: |
62.6 mm / 2.465 inch |
emc emission of interference: |
Per EN 61000-6-4, marine applications |
emc immunity to interference: |
Per EN 61000-6-2, marine applications |
exposure to pollutants: |
Per IEC 60068-2-42 and IEC 60068-2-43 |
fine stranded conductor: |
0.08 ª 2.5 mm / 28 ª 14 AWG |
fire load: |
0.778 MJ |
height: |
100 mm / 3.937 inch |
housing material: |
Polycarbonate: polyamide 6.6 |
indicators: |
LED (A-D) green: Status DO 1 ª DO 4 |
inductive load switch off energy dissipation max: |
0.3 J |
interference free with safety function: |
Yes |
isolation: |
500 V system/field |
load type: |
Resistive, inductive, lamp load |
mounting position: |
Horizontal (standing/lying): vertical |
mounting type: |
DIN-35 rail |
note: |
Pluggable connectors and coding fingers (753 Series) are not included. |
number of digital outputs: |
4 |
number of incoming power jumper contacts: |
2 |
number of outgoing power jumper contacts: |
2 |
output characteristic: |
High-side switching |
output current: |
Short-circuit-protected |
output current per channel: |
0.5 A |
output internal data width max: |
4 bits |
packaging type: |
Box |
permissible h2s contaminant concentration at a relative humidity 75: |
10 ppm |
permissible so2 contaminant concentration at a relative humidity 75: |
25 ppm |
pollution degree 5: |
2 per IEC 61131-2 |
power consumption 5 v system supply: |
10 mA |
power consumption field supply module with no external load: |
30 mA |
protection type: |
IP20 |
relative humidity without condensation: |
0.95 |
reverse voltage protection: |
Yes |
shock resistance: |
15g per IEC 60068-2-27 |
short circuit current: |
1.7 A |
signal type: |
Voltage |
solid conductor: |
0.08 ª 2.5 mm / 28 ª 14 AWG |
strip length: |
9 ª 10 mm / 0.35 ª 0.39 inch |
supply voltage field: |
24 VDC (-25 ª +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact) |
supply voltage system: |
5 VDC: via data contacts |
surrounding air temperature operation: |
0 ª 55 C |
surrounding air temperature storage: |
-40 ª 85 C |
switching frequency max: |
1 kHz |
total number of channels module: |
4 |
vibration resistance: |
4g per IEC 60068-2-6 |
voltage signal type: |
24 VDC |
weight: |
40.500 g |
width: |
12 mm / 0.472 inch |
wiring interface: |
Pluggable |
