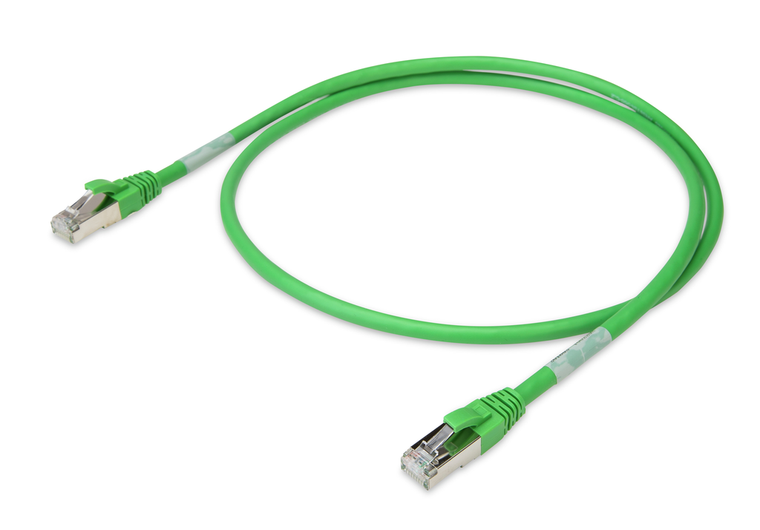

ETHERNET cable; RJ-45; RJ-45; Cat. 6A; Length: 3 m.
The WAGO component equivalent to 75612501013030 is a specific part or module used in various industrial and automation applications. It is designed to provide reliable and efficient performance, ensuring seamless integration within systems that require precise control and connectivity. This component is known for its durability, ease of installation, and compatibility with other WAGO products, making it a preferred choice for engineers and technicians in the field.
- baud rate:
- 10000 Mbit/s
- bending cycles:
- 8500 Mio.
- bending radius:
- 10 mm (min.)
- cable connection direction to mating direction:
- 0
- cable length:
- 3 m
- color:
- Green
- conductor design:
- Bare copper wire (7 x 0.16 mm)
- conductor insulation:
- PE (halogen-free)
- conductor resistance:
- < 142 /km
- connection type:
- RJ-45 plug - RJ-45 plug
- contact material:
- CuZn
- contact plating:
- CuNi/Au: 50 inch gold plating
- country of origin sales organisation germany:
- CN
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- insulation resistance:
- 1x108 xkm
- mating cycles max:
- 1200
- operating current:
- 0.72 A
- operating voltage:
- 80 V
- packaging type:
- Bag
- rated surge voltage:
- 500 V (wire/wire/shield rms 50 Hz 1 min)
- sheath material:
- LSOH TPE, halogen-free per IEC 60754-2, flame-retardant per IEC 60332-1, low-smoke per IEC 61034
- sheathed cable color:
- Green
- sheathed cable diameter:
- 6 6.4 mm
- shield:
- Overlapped aluminum-laminated foil and tinned copper braid (PiMF)
- surrounding air operating temperature dynamic:
- -40 +80 C
- surrounding air operating temperature static:
- -40 +80 C
- weight:
- 120.714 g
