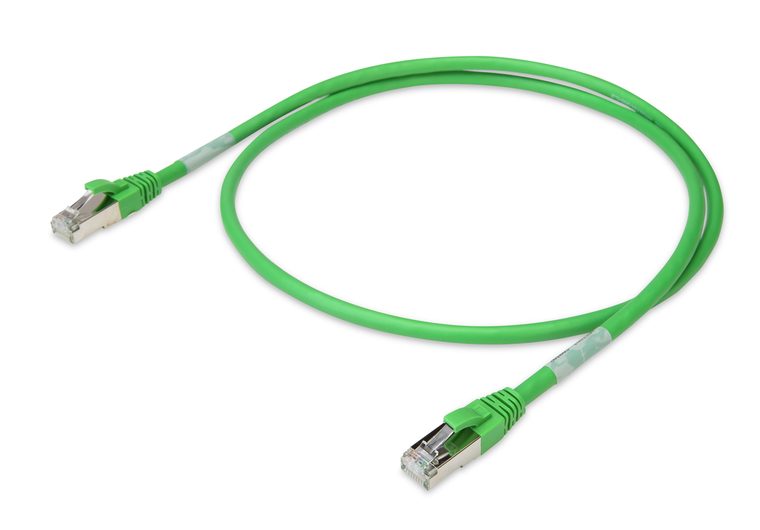

ETHERNET cable; Cat. 6A; RJ-45; RJ-45; Length: 7.5 m; green.
The WAGO component equivalent to 75612501013075 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique code, which helps in ensuring compatibility and proper functionality within systems that require precise and reliable components.
- baud rate:
- 10000 Mbit/s
- bending cycles:
- 8500 Mio.
- bending radius:
- 10 mm (min.)
- cable connection direction to mating direction:
- 0
- cable length:
- 7.5 m
- color:
- Green
- conductor design:
- Bare copper wire (7 x 0.16 mm)
- conductor insulation:
- PE (halogen-free)
- conductor resistance:
- < 142 /km
- connection type:
- RJ-45 plug - RJ-45 plug
- contact material:
- CuZn
- contact plating:
- CuNi/Au: 50 inch gold plating
- country of origin sales organisation germany:
- CN
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- insulation resistance:
- 1x108 xkm
- mating cycles max:
- 1200
- operating current:
- 0.72 A
- operating voltage:
- 80 V
- packaging type:
- Bag
- rated surge voltage:
- 500 V (wire/wire/shield rms 50 Hz 1 min)
- sheath material:
- LSOH TPE, halogen-free per IEC 60754-2, flame-retardant per IEC 60332-1, low-smoke per IEC 61034
- sheathed cable color:
- Green
- sheathed cable diameter:
- 6 6.4 mm
- shield:
- Overlapped aluminum-laminated foil and tinned copper braid (PiMF)
- surrounding air operating temperature dynamic:
- -40 +80 C
- surrounding air operating temperature static:
- -40 +80 C
- weight:
- 269.714 g
