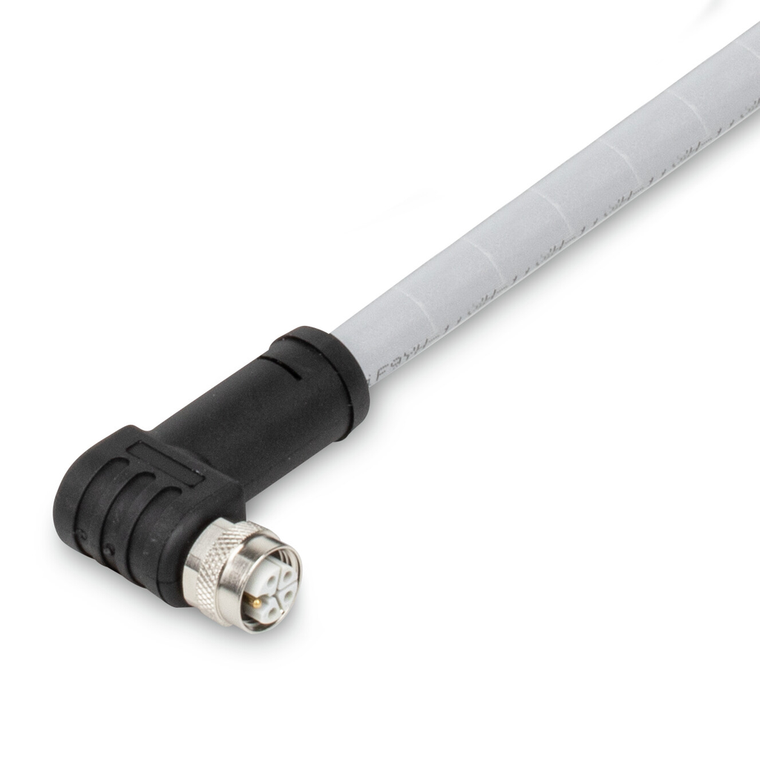

WAGO 756-3502/050-020

SKU:

756-3502/050-020

UPC:

MPN:

756-3502/050-020

Condition:

New

bending cycles:

10 Mio.

bending radius:

Fixed: >4x: Flexible: >7.5x

cable connection direction to mating direction:

90

cable length:

2 m

conductor design:

Bare copper wire (84 x 0.15 mm)

conductor insulation:

PP9Y (halogen-free)

conductor resistance:

13,7 /km

connection type:

M12 socket - Free end

connector interface coding cable adapter 1 1:

L-coded

contact resistance:

5 m

country of origin sales organisation germany:

DE

drag chain suitability:

Yes

fire load:

0.000 MJ

housing material:

TPU/TPU, black (~ RAL 9005)

insulation resistance:

1000 M

operating current:

16 A

operating voltage:

63 VDC per IEC 60664-1

packaging type:

Not packed

plc manufacturer:

WAGO

pollution degree 5:

3 per IEC 60664-1

protection type:

IP68

rated surge voltage:

1.5 kV per IEC 61076-2-111

sheathed cable color:

Gray

sheathed cable diameter:

9.6 10.2 mm

surrounding air operating temperature dynamic:

-30 +90 C

surrounding air operating temperature static:

-40 +90 C

surrounding air temperature operation:

-40 90 C (UL max. +80 C)

tightening torque:

1 Nm

type code:

LiF9YH-11Y-0B 5x1.5mm

weight:

300.000 g
