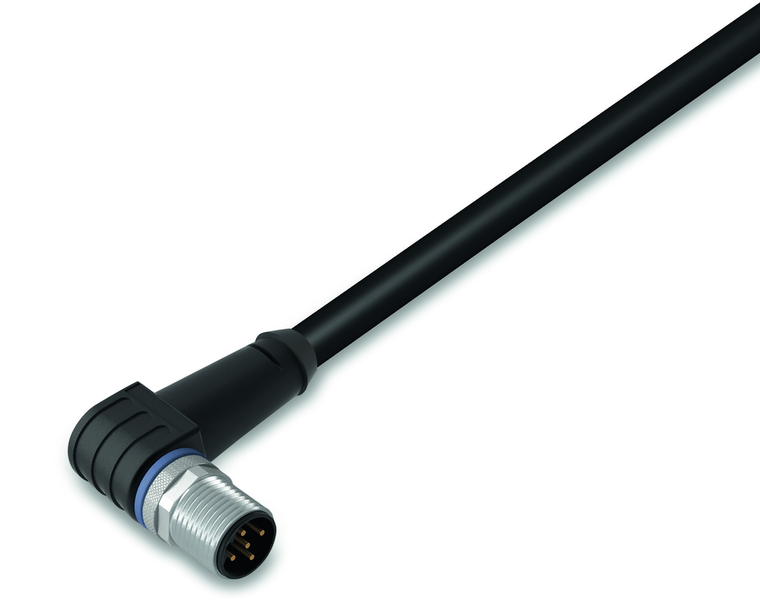

WAGO 756-5312/090-015 sensor-actuator patch cord, 1.5m, M12 male angled connector, 5 poles, shielded, PUR cable
Wago
$69.98
Sensor/Actuator cable; 8-pole; Length: 1.5 m.
The WAGO component equivalent to 7565312090015 is a specific part used in various electrical and automation applications. It is designed to provide reliable and efficient connectivity solutions, ensuring optimal performance in complex systems. This component is known for its high quality, durability, and compatibility with a wide range of devices, making it a preferred choice for professionals in the industry.
- bending cycles:
- 2 Mio.
- cable connection direction to mating direction:
- 90
- cable length:
- 1.5 m
- connection point shielded:
- Yes
- connection type:
- M12 plug - Free end
- connector interface coding cable adapter 1 1:
- A-coded
- contact material:
- CuSn
- contact plating:
- CuNi/Au
- country of origin sales organisation germany:
- HU
- drag chain suitability:
- Yes
- fire load:
- 0.000 MJ
- halogen free:
- Yes
- housing material:
- Polyurethane (PUR)
- operating current:
- 0.166666666666667
- operating voltage:
- 250 VAC/DC
- packaging type:
- Box
- pole no:
- 8
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated surge voltage:
- 1.5 kV
- sheath material:
- Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing
- sheathed cable color:
- Black
- sheathed cable diameter:
- 6.1 6.5 mm
- surrounding air operating temperature dynamic:
- -25 +90 C
- surrounding air operating temperature static:
- -50 +90 C
- tightening torque:
- 1 Nm
- weight:
- 108.000 g
