WAGO 756-9203/050-000
Wago
$26.17

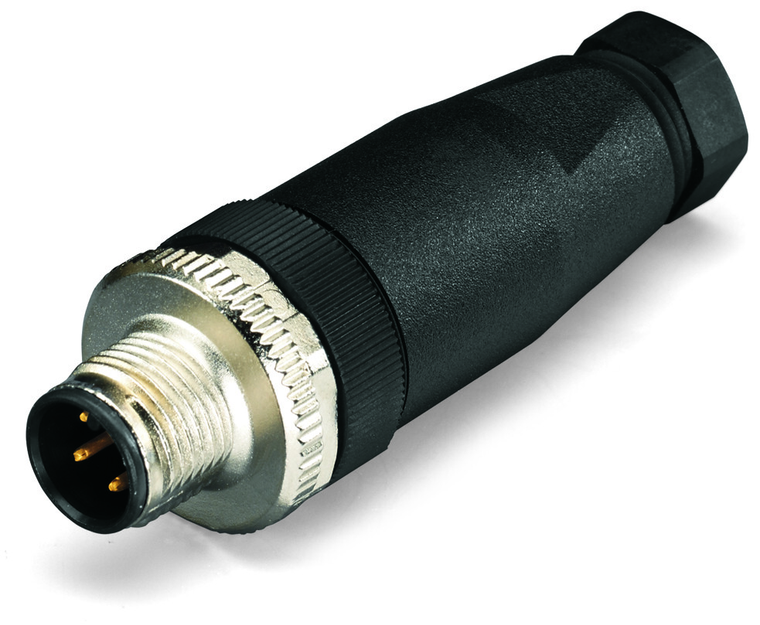

Fitted pluggable connector; 5-pole; M12 plug, straight, A-coded; Spring.
The WAGO component equivalent to 7569203050000 is a specific part or module used in various applications, likely within the realm of electrical engineering or automation. This component is identified by its unique part number, which helps in ensuring compatibility and proper functionality within a system. The exact specifications, features, and applications of this component would be detailed in its technical documentation, which is essential for users to understand its capabilities and integration requirements.
- cable connection direction to mating direction:
- 0
- connectable sheathed cable diameter:
- 6 8 mm
- connection type:
- M12 plug
- connection type 1:
- Spring clamp technology
- connector interface coding cable adapter 1 1:
- A-coded
- country of origin sales organisation germany:
- DE
- fire load:
- 0.000 MJ
- packaging type:
- Box
- pole no:
- 5
- protection type:
- IP67
- solid conductor:
- 0.14 0.5 mm
- surrounding air temperature operation:
- -25 85 C
- weight:
- 27.000 g
