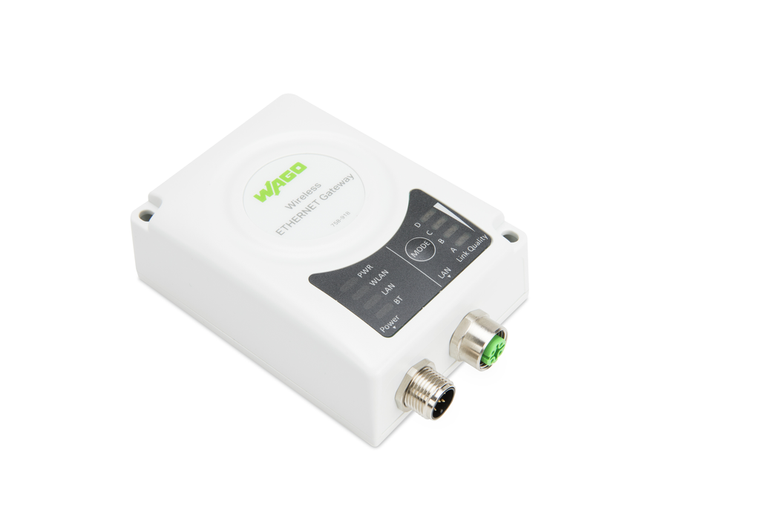

WLAN ETHERNET Gateway.
The Wireless Ethernet WLAN gateway from the WAGO 758 series supports Bluetooth 4.0 and WLAN IEEE 802.11 standards a/b/g/d/e/i/h, and operates on a 2400MHz transmission frequency. It features Ethernet/IP communication capability, a supply voltage range of 9-30Vdc, and includes two 5-pin M12 connectors. The device is rated IP65 for protection and can function in ambient temperatures ranging from -30°C to +65°C. It serves as a replacement for the obsolete 758-917 component and is equivalent to the 758918 model.
- antenna:
- Internal directional antenna
- configuration options:
- Push-button operation || Web-Based Management
- conformity marking:
- CE
- connection technology communication fieldbus:
- Ethernet: 1 x M12 socket: B-coded
- connection technology supply:
- 1 x M12 plug: A-coded
- country of origin sales organisation germany:
- SE
- depth:
- 92.7 mm / 3.65 inch
- fire load:
- 0.000 MJ
- frequency band:
- ISM band, 2.4 GHz (Bluetooth, WLAN): ISM band, 5 GHz (WLAN)
- height:
- 33.2 mm / 1.307 inch
- note:
- The maximum range in the field decreases within buildings and varies depending on building materials and spatial geometry. Therefore, range specifications within buildings can only represent a typical value that can normally be achieved. More detaile
- number of inputs:
- 1 (trigger input: 9 30 VDC)
- packaging type:
- Box
- protection type:
- IP65
- radio technology:
- Bluetooth: 4.0 || WLAN: 802.11a/b/g/d/e/i/h
- security authentication:
- WPA/WPA2 PSK, LEAP, PEAP
- security encryption:
- None, WEP64, WEP128, TKIP, AES/CCMP
- supply voltage:
- 24 VDC (9 30 V)
- surrounding air temperature operation:
- -30 65 C
- surrounding air temperature storage:
- -40 85 C
- topology:
- Peer-to-peer connection
- transmission range:
- Up to 400 m
- weight:
- 120.000 g
- width:
- 67.8 mm / 2.669 inch
