Wago

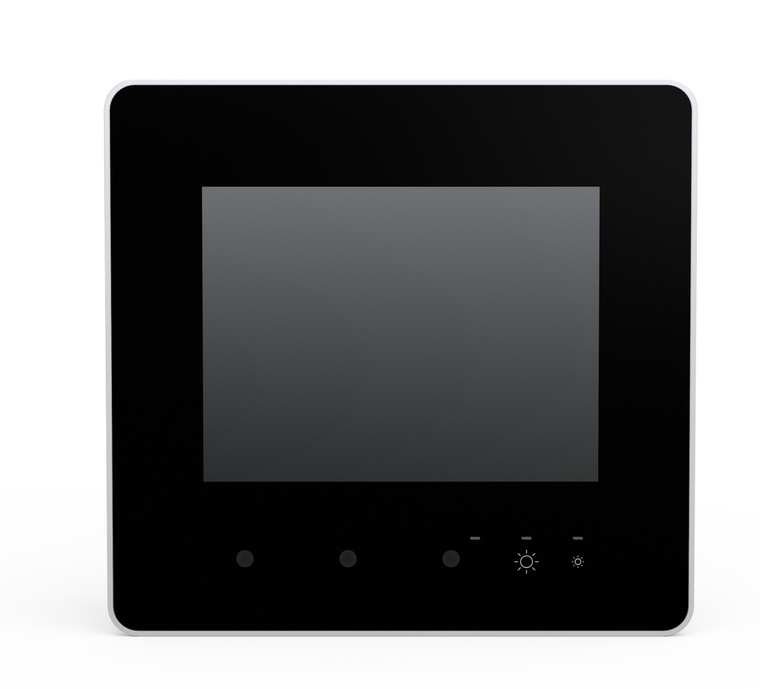

WAGO 762-6202/8000-001

SKU:

762-6202/8000-001

UPC:

MPN:

762-6202/8000-001

Condition:

New

brightness:

630 cd/m2

communication:

EtherNet/IPTM Adapter (slave), library for e!RUNTIME (prerequisite: e!RUNTIME PLC 600 license) || Modbus TCP Master/Slave (prerequisite: e!RUNTIME PLC 600 license) || EtherCAT Master, requires an additional license (prerequisite: e!RUNTIME PLC 600 li

connection technology communication fieldbus:

Modbus TCP: 2 x RJ-45: 2 x USB 2.0 host (type A)

connection technology supply:

1 x included 734-103 female connector featuring three CAGE CLAMP connections

contrast ratio:

12.5006944444444

controls:

Resistive touch panel: 2 capacitive keys: proximity sensor

country of origin sales organisation germany:

DE

data memory:

128 MB

depth:

58 mm / 2.283 inch

display:

Resistive touchscreen (black front)

display colors:

262,000 colors

display diagonal:

14.5 cm (5.7 Inches)

ethernet protocols:

DHCP || DNS || FTP || FTPS || HTTP || HTTPS || SSH

fire load:

0.000 MJ

graphics resolution:

(640 x 480) px

height:

163 mm / 6.417 inch

indicators:

Three-color LED (red, green, blue)

internal memory flash:

4096 MB

main memory ram:

2048 MB

memory card type:

MicroSD (max. 2 GB): microSDHC (max. 32 GB)

mounting type:

Clamping elements (included) or VESA mount (4 x M4x8)

note on protection type:

IP65 (front side): IP20 (rear side), per EN 60529

operating power:

6.8 W, without USB load: 11.8 W, with USB load

operating system:

Real-time Linux (with RT-Preempt patch)

packaging type:

Box

panel cutout w x h:

(157 x 148) mm

processor:

ARM Cortex A9 Quadcore 1.0 GHz

program memory:

32 MB

programming environment:

e!COCKPIT (based on CODESYS V3)

protection type:

IP65

relative humidity without condensation:

0.9

supply voltage:

24 VDC, SELV (18 31.2 V): with reverse voltage protection

surrounding air temperature operation:

-20 55 C (when mounted vertically: 20 +50 C, other mounting positions)

surrounding air temperature storage:

-20 80 C

viewing angle horizontal vertical:

80 / 80

visualization:

Webserver || Web Visu

weight:

843.000 g

width:

172 mm / 6.772 inch
