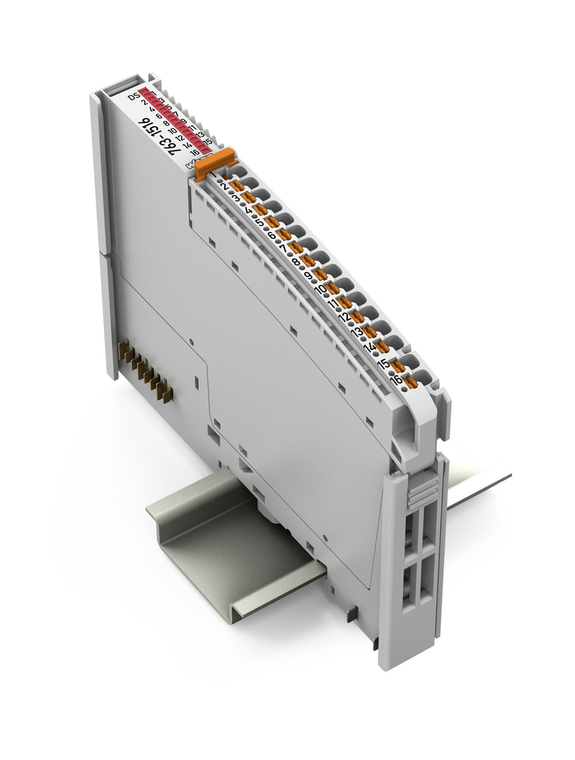

16-channel digital output; 24 VDC 0.5 A
- actuator connection:
- 16 x (1-wire)
- conformity marking:
- CE
- connection technology inputs outputs:
- 16 x Push-in CAGE CLAMP
- connection type 1:
- Inputs/outputs
- country of origin sales organisation germany:
- DE
- current carrying capacity power jumper contacts:
- 0
- data width:
- 16-bit channel status
- depth:
- 75 mm / 2.953 inch
- device specific:
- Synchronization mode: time-synchronized, freewheeling
- emc emission of interference:
- Per EN 61000-6-3, -4
- emc immunity to interference:
- Per EN 61000-6-1, -2
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fire load:
- 0.047 MJ
- height:
- 105 mm / 4.134 inch
- isolation field system:
- Min. 1000 VDC (1 min): per EN/UL 61010-2-201
- load type:
- Resistive: 48 16 k, at 24 V: Inductive: DC13: Lamp load: up to 5 W
- load type of switching frequency:
- Resistive load
- marking:
- Cl I, Div 2, Group A, B, C, D, T4
- mounting position:
- Horizontal, typical for control cabinets (nominal mounting position): horizontal (floor mounting position): standing (vertical at bottom)
- mounting type:
- DIN-35 rail
- note conductor cross section:
- Insulated ferrule: 0.75 mm (max.)
- number of digital outputs:
- 8
- number of incoming power jumper contacts:
- 2
- number of outgoing power jumper contacts:
- 2
- operating altitude:
- Without temperature derating: 0 2000 m: with temperature derating: 2000 3000 m (0.5 K/100 m)
- output characteristic:
- Semiconductor, high-side switching
- output current module:
- 0.333333333333333
- output current per channel:
- 0.5 A
- output voltage:
- 24 VDC
- pollution degree 5:
- 2
- power consumption field supply module with no external load:
- 26 mA
- power loss pl:
- 1.6 W
- protection against incorrect wiring:
- Short-circuit-protected || Self-resetting
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- signal type:
- Voltage
- solid conductor:
- 0.25 1.5 mm / 22 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- supply voltage field:
- 24 VDC, SELV (-25 +30 %): UF
- surrounding air temperature operation:
- -25 60 C (Horizontal, typical control cabinet installation: 25 +50 C, other mounting positions)
- surrounding air temperature storage:
- -40 85 C
- switching frequency max:
- 1 kHz: Resistive load
- switching frequency max 2:
- 3 Hz: Inductive load
- switching frequency max 3:
- 500 Hz: Lamp load
- temperature range of connecting cable per ul 61010 2 201 min:
- 85 C
- temperature range of the connecting cable according to en 61010 2 201:
- (Tsurrounding air + 25 K)
- total number of channels module:
- 8
- voltage signal type:
- 24 VDC
- weight:
- 73.000 g
- width:
- 12 mm / 0.472 inch
