Wago

WAGO 769-208/281-411 2-pin component carrier block; with 2 jumper positions; with diode 1N4007; anode, right side; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; gray

(No reviews yet) Write a Review
SKU:
769-208/281-411
MPN:
51168696
Condition:
New
color:
Gray
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
28.5 mm / 1.122 inch
design:
Horizontal type
fire load:
0.170 MJ
flammability class per ul94:
V0
height:
87.5 mm / 3.445 inch
insulation material:
Polyamide (PA66)
marking level:
Center marking
mounting type:
DIN-35 rail
packaging type:
Box
rated current:
0.5 A
weight:
7.718 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
$11.14

Description

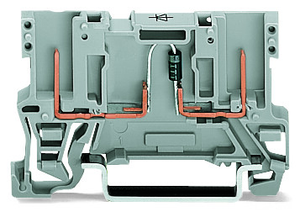

2-pin diode carrier terminal block; anode, right side; with 2 jumper positions.

The WAGO 769 X-COM series component carrier feed-through/thru terminal block is a gray, single-deck unit featuring a diode (1N4007 with the anode on the right side), two jumper positions, and a center marking slot. It accommodates one feed-through pole for two wires, each with a plug-in pin connection, and is rated for a current of 0.5A. The terminal block is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) and has a width of 5mm, equivalent to model 769208281411.
