Wago

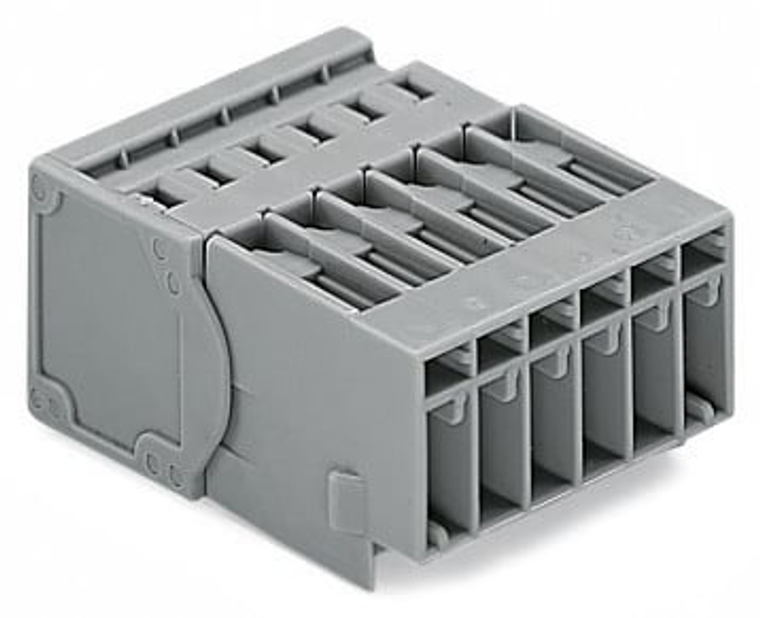

WAGO 769-607/001-000

SKU:

769-607/001-000

UPC:

MPN:

769-607/001-000

Condition:

New

actuation type:

Operating tool

color:

Gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

connector connection type:

For conductor

contact type pluggable connector:

Male connector/plug

country of origin sales organisation germany:

PL

depth:

40.2 mm / 1.583 inch

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fire load:

0.417 MJ

flammability class per ul94:

V0

height from the surface:

18.3 mm / 0.72 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

mounting type:

Snap-in foot

nominal cross section:

4 mm

nominal voltage iii 3:

500 V

packaging type:

Box

pin spacing:

5 mm / 0.197 inch

pole no:

7

rated current:

32 A

rated surge voltage iii 3:

6 kV

solid conductor:

0.08 4 mm / 28 12 AWG

strip length:

8 9 mm / 0.31 0.35 inch

weight:

20.877 g

width:

38.6 mm / 1.52 inch

wiring direction:

Front-entry wiring
