| Description | Male connector; with CAGE CLAMP connection and fixing flanges; for screw or similar mounting types; for parallel or perpendicular mounting; Pin spacing 5 mm / 0.197 in; 11-pole |
| Remarks | |
| |
| Item properties | Miscellaneous | Name | Value | Unit | | No. of poles | 11 | | | Pin spacing | 5 mm / 0.197 in | | | Total number of connection points | 11 | | | Total number of potentials | 11 | | | Color | gray | | | Rated voltage (III / 3) [V] | 500 | V | | Rated impulse voltage (III / 3) [kV] | 6 | kV | | Rated current [A] | 32 | A | | Connection technology | CAGE CLAMP | | | Number of connection points connector | 1 | | | Actuation type | Operating tool | | | Connectable conductor materials | Copper | | | Nominal cross section | 4 mm nbsp; | | | Solid conductor | 0.08 4 mm / 28 12 AWG | | | Fine-stranded conductor | 0.08 4 mm / 28 12 AWG | | | Strip length | 8 9 mm / 0.31 0.35 Inch | | | Type of wiring | Front-entry wiring | | | Insulating material | Polyamide 66 (PA 66) | | | Fire load [MJ] | 0.672 | MJ | | Weight [g] | 32.881 | g | | Width | 58.6 mm / 2.307 Inch | | | Height from the surface | 18.3 mm / 0.72 Inch | | | Depth | 40.2 mm / 1.583 Inch | | | Pin spacing from [mm] | 5 | mm | | Mounting type | Mounting flange | | |
.

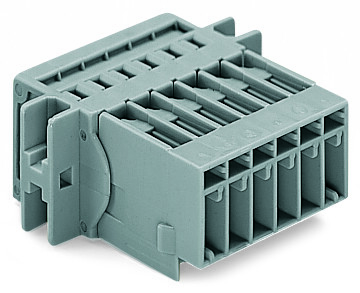

The WAGO 769 X-COM series male connector features mounting flanges, 11 poles, and a pin spacing of 5mm. It supports a nominal cross-section of 4mm² and accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG. The connector is rated for a current of 32A, comes in gray color, and utilizes CAGE CLAMP spring connections. It is equivalent to the model number 769611002000.
