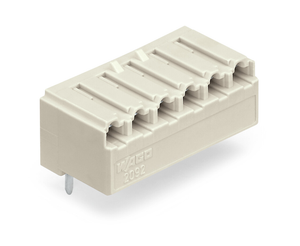

WAGO 770-1325

(No reviews yet) Write a Review
SKU:
770-1325
Condition:
New
  • Wago 770-1325
  • Wago 770-1325
$5.39

Description

Socket; 5-pole; Cod. Q; 4,00 mm²; green
View AllClose

Additional Information

actuation type:
Operating tool || Push-in
application:
For "Clean Ground" applications
clamping spring material:
Chrome nickel spring steel (CrNi)
coding:
Q
color:
Green
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper or copper alloy (surface-treated)
contact type pluggable connector:
Female connector/socket
continuous operating temperature:
-35 +85 C
country of origin sales organisation germany:
DE
depth:
37.5 mm / 1.476 inch
fine stranded conductor:
0.5 4 mm / 20 12 AWG
fine stranded conductor with ferrule push in termination:
1.5 mm / 16 AWG
fine stranded conductor with insulated ferrule:
0.25 1.5 mm / 20 16 AWG
fine stranded conductor with uninsulated ferrule:
0.25 2.5 mm / 20 14 AWG
fire load:
0.265 MJ
height:
12.9 mm / 0.508 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Can be retrofitted
locking of plug in connection:
Locking lever
marking:
N PE1 PE2 PE3 L
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
nominal cross section:
4 mm
nominal voltage iii 3:
400 V
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
10 mm / 0.394 inch
pole no:
5
processing temperature:
-5 +40 C
protection class:
IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
rated current:
32 A
rated current ul 1977:
23 A
rated surge voltage iii 3:
6 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
Locked: > 80 N
solid conductor:
0.5 4 mm / 20 12 AWG
solid conductor push in termination:
1.5 4 mm / 16 12 AWG
stranded conductor:
0.5 2.5 mm / 20 14 AWG
strip length:
9 mm / 0.35 inch
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)
weight:
15.705 g
width:
50 mm / 1.969 inch
