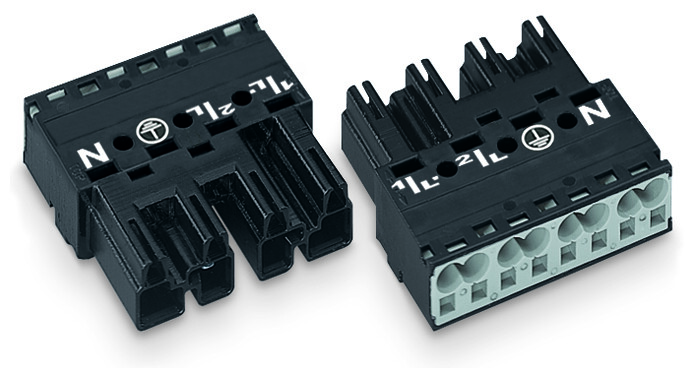

WAGO 770-214 4-Pole Plug, 25A, 400V, Black
Wago
$3.51
Plug; without strain relief housing; 4-pole; 100% protected against mismating; 2-conductor connection; Pin spacing 10 mm / 0.394 in
- Protected against mismating and maintenance-free
- Push-in CAGE CLAMP spring pressure connection technology allows solid conductors to be simply pushed into a unit
- Two-wire connection per pole for loops or bridges
- Additional variable coding is possible
The WAGO component is a versatile and reliable electrical connector used in various applications for connecting wires. It is known for its ease of use, allowing for quick and secure connections without the need for tools. The component features a compact design, making it suitable for use in tight spaces, and it ensures a stable and maintenance-free connection. WAGO connectors are widely used in industrial, commercial, and residential electrical installations, offering a high level of safety and efficiency.
- actuation type:
- Operating tool || Push-in
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- Color:
- Black
- conductor entry direction to mating direction:
- 0
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Male connector/plug
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 37.5 mm / 1.476 inch
- fine stranded conductor:
- 0.5 4 mm / 20 12 AWG
- fine stranded conductor with ferrule push in termination:
- 1.5 mm / 16 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm / 20 16 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm / 20 14 AWG
- fire load:
- 0.248 MJ
- height:
- 12.9 mm / 0.508 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Can be retrofitted
- locking of plug in connection:
- Locking lever
- marking:
- N 2/L 1/L'
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal cross section:
- 4 mm
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 4
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.5 4 mm / 20 12 AWG
- solid conductor push in termination:
- 1.5 4 mm / 16 12 AWG
- stranded conductor:
- 0.5 2.5 mm / 20 14 AWG
- strip length:
- 9 mm / 0.35 inch
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 12.858 g
- width:
- 30 mm / 1.181 inch
