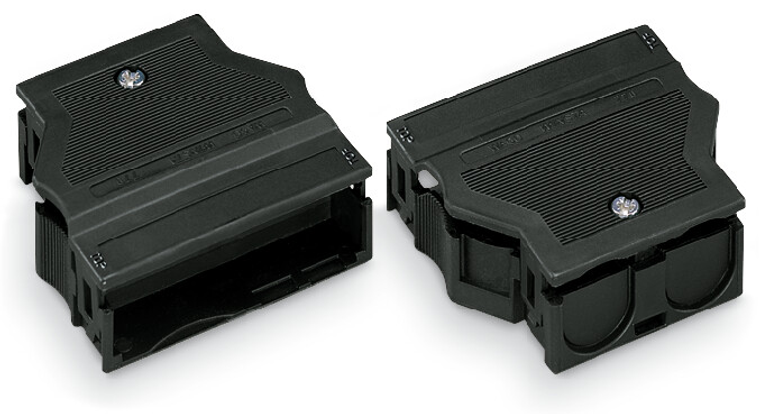

Strain relief housing; 5-pole; for 2 cables; 9.0
13.0 mm; 55 mm; black.
The WAGO component equivalent to 770505 is a specific type of electrical connector or terminal block used for various wiring applications. It is designed to provide secure and reliable connections in electrical installations, ensuring efficient conductivity and safety. This component is part of WAGO's extensive range of products known for their quality and innovation in the field of electrical engineering.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 52.5 mm / 2.067 inch
- design:
- Horizontal type
- fire load:
- 1.164 MJ
- flammability class per ul94:
- V0
- height:
- 115.5 mm / 4.547 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 6 35 mm / 8 2 AWG
- strip length:
- 23 mm / 0.91 inch
- weight:
- 152.283 g
- width:
- 16 mm / 0.63 inch
- wiring direction:
- Front-entry wiring
