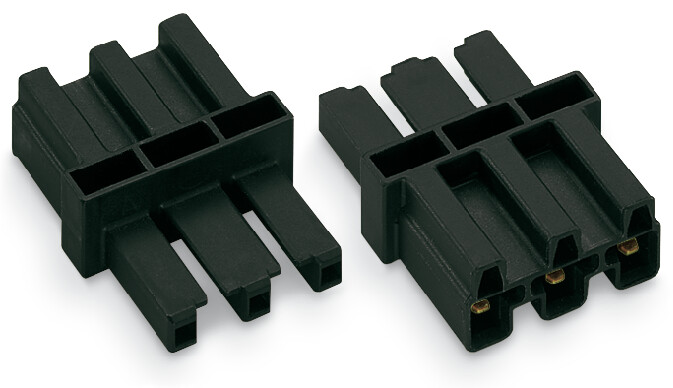

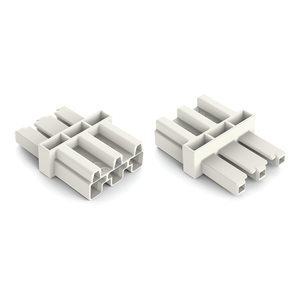

WAGO 770-603

SKU:

770-603

UPC:

MPN:

770-603

Condition:

New

application:

General mains applications

coding:

A

color:

Black

contact material:

Copper or copper alloy (surface-treated)

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

40 mm / 1.575 inch

distributor type:

Intermediate coupler

fire load:

0.126 MJ

height:

11.6 mm / 0.457 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

No

locking of plug in connection:

Locking lever

marking:

Plain

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal voltage iii 3:

250 V

note:

At least one snap-in connector without a locking lever is required on one side when connecting two lights directly via intermediate coupler.

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

10 mm / 0.394 inch

pole no:

3

processing temperature:

-5 +40 C

protection class:

IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

rated current:

25 A

rated current ul 1977:

23 A

rated surge voltage iii 3:

4 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

When locked: > 80 N

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

6.400 g

width:

30 mm / 1.181 inch
