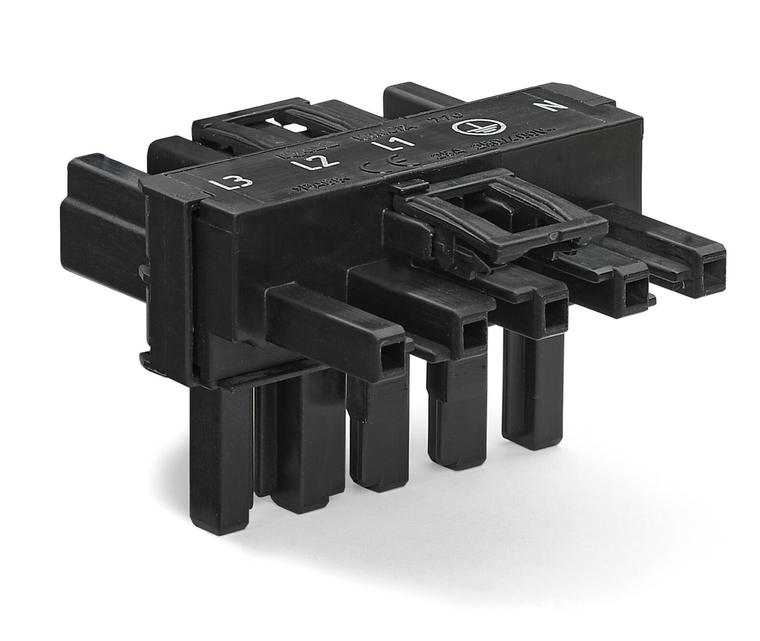

WAGO 770-622 T-distribution connector, 5-pole, Cod. A, black
Wago
$9.77
T-distribution connector; 5-pole; Cod. A; 1 input; 2 outputs; 3 locking levers; for flying leads; black.
The WAGO component equivalent to 770622 is a specific type of electrical connector or terminal block used in various industrial and commercial applications. It is designed to provide reliable and secure connections for electrical wiring, ensuring efficient and safe power distribution. This component is known for its ease of use, durability, and compatibility with a wide range of electrical systems, making it a popular choice among professionals in the field.
- application:
- General mains applications
- coding:
- A
- color:
- Black
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 48.9 mm / 1.925 inch
- distributor type:
- T-distribution connector
- fire load:
- 0.438 MJ
- height:
- 35.9 mm / 1.413 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- N L1 L2 L3
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of locking levers:
- 3
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- suitable:
- For flying leads
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 23.681 g
- width:
- 54 mm / 2.126 inch
