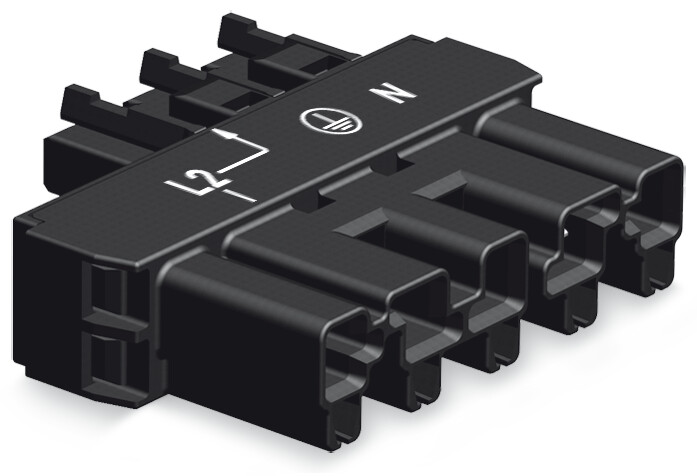

WAGO 770-902 Intermediate Coupler, 5-Pole to 3-Pole, 25A, 400V
Wago
$5.37
Intermediate coupler; 5-pole/3-pole; Cod. A; L2 - L; black.
The WAGO component equivalent to 770902 is a specialized electrical connector designed for efficient and secure wire connections. It features a compact design, easy-to-use lever mechanism, and reliable performance, making it suitable for various electrical applications. This component ensures a secure connection without the need for tools, reducing installation time and improving safety. It is widely used in industrial, commercial, and residential electrical systems for its durability and ease of use.
- application:
- General mains applications
- coding:
- A
- Color:
- Black
- contact material:
- Copper or copper alloy (surface-treated)
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 53.4 mm / 2.102 inch
- distributor type:
- Intermediate coupler
- fire load:
- 0.338 MJ
- height:
- 13 mm / 0.512 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Yes
- locking of plug in connection:
- Locking lever
- marking:
- L2 - L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal voltage iii 3:
- 400 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 10 mm / 0.394 inch
- pole no:
- 5
- processing temperature:
- -5 +40 C
- protection class:
- IP20: When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)
- rated current:
- 25 A
- rated current ul 1977:
- 23 A
- rated surge voltage iii 3:
- 6 kV
- rated surge voltage iii 3 2:
- 4 kV
- rated voltage iii 3 2:
- 250 V
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- When locked: > 80 N
- suitable:
- 5- to 3-pole: L2 - L
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 16.928 g
- width:
- 47.8 mm / 1.882 inch
