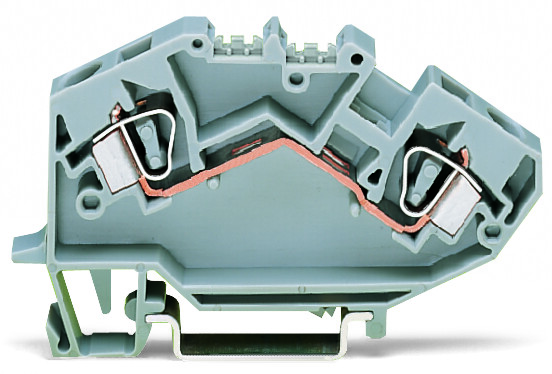

2-conductor through terminal block6 mm, light gray
Electrical Data
- Rated current: 39 A
- Rated voltage EN (Ex e II): 750 V
- Rated current (Ex e II): 39 A
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 0.2 6 mm / 24 10 AWG
- Fine-stranded conductor: 0.2 6 mm / 24 10 AWG
- Strip length: 12 13 mm / 0.47 0.51 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 8 mm / 0.315 inch
- Height from upper-edge of DIN-35 rail: 43.5 mm / 1.713 inch
- Depth: 82.5 mm / 3.248 inch
Mechanical Data
- Design: Angled
- Type of mounting: DIN-35 rail
- Marking level: Center marking
Material Data
- Color: light gray
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.303 MJ
- Weight: 16.966 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4044918583404
- Customs Tariff No.: 85369010000
The WAGO 782 TOPJOB Classic series feed-through terminal block is a light gray, 1-deck/level component with a center marking slot, suitable for Ex e II applications. It features one feed-through pole (1P) with two wires (1 clamp + 1 clamp) for wire sizes ranging from 0.2mm² to 6mm² or #24AWG to #10AWG. The terminal block is rated for a current of 39A and utilizes CAGE CLAMP spring connections. It is designed for mounting on a DIN-35 rail (35 x 15 / 35 x 7.5) with an 8mm width and is equivalent to model 782992.
- actuation type:
- Operating tool
- color:
- Light gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 43.5 mm / 1.713 inch
- design:
- Angled
- fine stranded conductor:
- 0.2 6 mm / 24 10 AWG
- fire load:
- 0.303 MJ
- flammability class per ul94:
- V0
- height:
- 82.5 mm / 3.248 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- rated current:
- 39 A
- rated current ex e ii:
- 39 A
- rated voltage en ex e ii:
- 750 V
- ratings per:
- IEC/EN 60947-7-1
- solid conductor:
- 0.2 6 mm / 24 10 AWG
- strip length:
- 12 13 mm / 0.47 0.51 inch
- weight:
- 16.966 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Front-entry wiring
