Wago

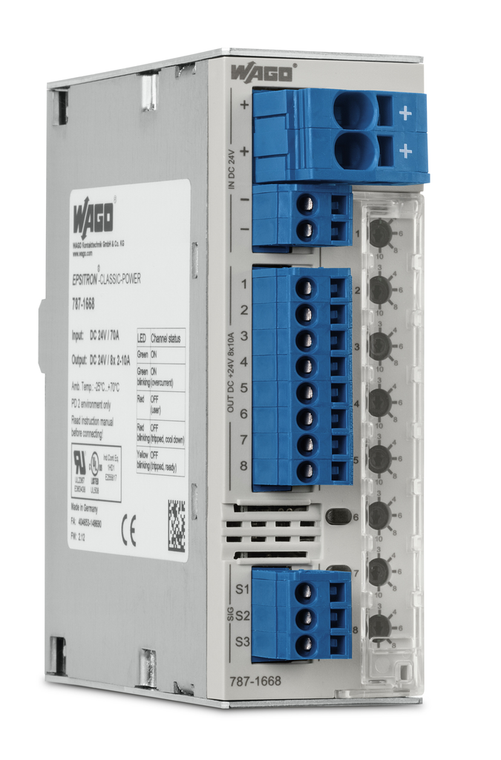

WAGO 787-1668/106-000

SKU:

787-1668/106-000

UPC:

MPN:

787-1668/106-000

Condition:

New

active current limitation:

No

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

connection technology 2:

CAGE CLAMP

connection type 1:

Input (+)

connection type 2:

Input (): output: signaling

country of origin sales organisation germany:

DE

default setting:

DC 6 A: switched on

depth from upper edge of din rail:

142.5 mm / 5.61 inch

derating:

No derating

efficiency typ:

0.99

fine stranded conductor:

0.5 10 mm / 20 8 AWG

fine stranded conductor 2:

0.08 2.5 mm / 28 12 AWG

fire load:

0.000 MJ

height:

127 mm / 5 inch

input voltage range:

DC 18 30 V

internal fuse:

T 15 A per channel

isolation voltage connectors housing:

DC 0.5 kV

mounting type:

DIN-35 rail

mtbf:

> 500,000 h (per IEC 61709)

nominal input voltage ui nom:

DC 24 V

nominal output current io nom:

8 x 1 / 2 / 3 / 4 / 5 / 6 A (Adjustable for each channel via selector switch)

nominal output voltage uo nom:

8 x DC 24 V

operation status indicator:

Green LED (channel OK) || Red LED (tripped channel)

output voltage range:

DC 18 30 V (Ue voltage drop)

packaging type:

Box

parallel operation of single channels:

Not permitted

pollution degree:

2

power loss pl:

¤ 1.32 W (No load): ¤ 8 W (8 x 6 A)

protection class:

III

protection type:

IP20 (per EN 60529)

relative humidity:

5 96 % (no condensation permissible)

remote input:

Reactivation of all tripped channels via 15 30 VDC pulse for min. 500 ms || Switching on/off any number of channels via pulse sequence

resistance to reverse feed:

¤ DC 35 V

reverse voltage protection:

No

series operation:

No

signaling:

8 x LED (green/red/orange) || 1 x Remote control input (S1) || 2 x Active signal output (S2: S3)

solid conductor:

0.5 10 mm / 20 8 AWG

solid conductor 2:

0.08 2.5 mm / 28 12 AWG

standards specifications:

EN 60950 || EN 61000-6-2 || EN 61000-6-3 || UL 508 || UL 2367 || DNV GL

strip length:

13 15 mm / 0.51 0.59 inch

strip length 2:

8 9 mm / 0.31 0.35 inch

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-25 85 C

switch on behavior:

Time-delayed channel switching (load-dependent, min. 50 ms / max. 5 s)

switch on capacity:

> 50000 F per channel

total number of channels module:

8

transient suppression primary:

Suppressor diode (33 V)

voltage drop:

¤ 120 mV (Input (+))

wago connector:

WAGO 831 Series

wago connector 2:

WAGO 721 Series

weight:

490.000 g

width:

42 mm / 1.654 inch
