Wago

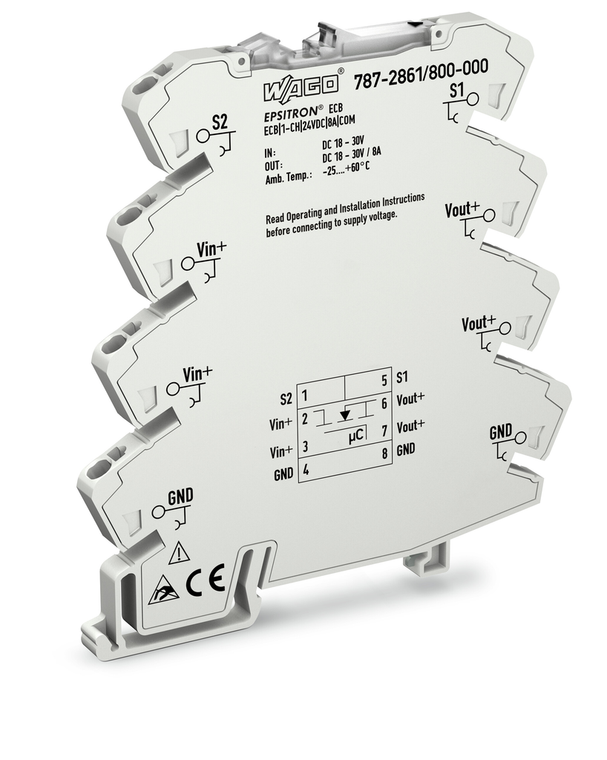

WAGO 787-2861/800-000

SKU:

787-2861/800-000

UPC:

MPN:

787-2861/800-000

Condition:

New

active current limitation:

No

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

94 mm / 3.701 inch

derating:

See instruction manual

efficiency typ:

0.96

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.405 MJ

height from upper edge of din rail:

97.8 mm / 3.85 inch

input voltage range:

DC 18 30 V

internal fuse:

T 15 A

isolation voltage connectors housing:

DC 0.5 kV

mounting type:

DIN-35 rail

mtbf:

1,245,816 h (per MIL-HDBK-217F2)

nominal input voltage ui nom:

DC 24 V

nominal output current io nom:

1 x 8 A (Fixed setting)

nominal output voltage uo nom:

1 x DC 24 V

number of jumper slots:

8

operation status indicator:

Green LED (channel OK) || Red LED (tripped channel)

output voltage range:

DC 18 30 V (Ue voltage drop)

packaging type:

Bag

parallel operation of single channels:

Not permitted

pollution degree:

2

power loss pl:

¤ 0.36 W (No load)

protection class:

III

protection type:

IP20 (per EN 60529)

relative humidity:

10 95 % (no condensation permissible)

remote input:

18 30 VDC signal, switches on/off and resets the channel

reverse voltage protection:

No

series operation:

No

signaling:

1 x Status LED (green/yellow/red/blue) || 1 x Control input || 1 x Active signal output (Ui, max. 4 mA)

solid conductor:

0.08 2.5 mm / 28 14 AWG

standards specifications:

EN 61000-6-2 || EN 61000-6-3 || UL 61010-2-201 || DNV GL

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation:

-25 65 C (Device starts at 40 C (type-tested): Derating must be observed)

surrounding air temperature storage:

-40 85 C

switch on behavior:

Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms)

switch on capacity:

> 50000 F per channel

total number of channels module:

1

transient suppression primary:

Suppressor diode (33 V)

voltage drop:

¤ 25 mV

wago connector:

WAGO 857 Series

weight:

53.620 g

width:

6 mm / 0.236 inch
