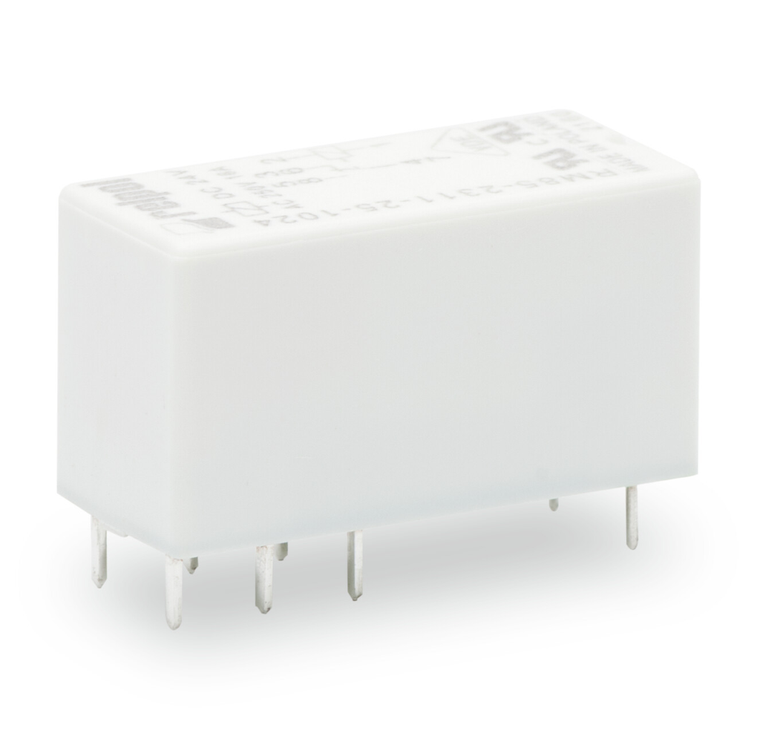

WAGO 788-155

(No reviews yet) Write a Review

Write a Review

×

WAGO 788-155

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

788-155

Condition:

New

contact material relay:

AgNi + Au

country of origin sales organisation germany:

DE

depth:

29 mm / 1.142 inch

dielectric strength control load circuit ac 1 min:

5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

3 ms

electrical life no resistive load 23 c:

30 x 103 switching operations

fire load:

0.000 MJ

height from the surface:

15.7 mm / 0.618 inch

limiting continuous current:

16 A

mechanical life:

30 x 106 switching operations

mounting type:

Pluggable module

nominal input voltage un:

DC 24 V

note:

To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.

number of changeover switchover contacts:

1

packaging type:

Box

pull in time typ:

7 ms

recommended minimum load:

5 V / 2 mA / 50 mW

standards specifications:

EN 61810-1

surrounding air temperature operation at un:

-40 Ǫ 85 C

surrounding air temperature storage:

-40 Ǫ 85 C

switching capacity:

AC-15: 6 A / AC 250 V: DC-13: 2 A / DC 24 V

switching power resistive max:

AC 4000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

weight:

11.000 g

width:

12.7 mm / 0.5 inch
