Wago

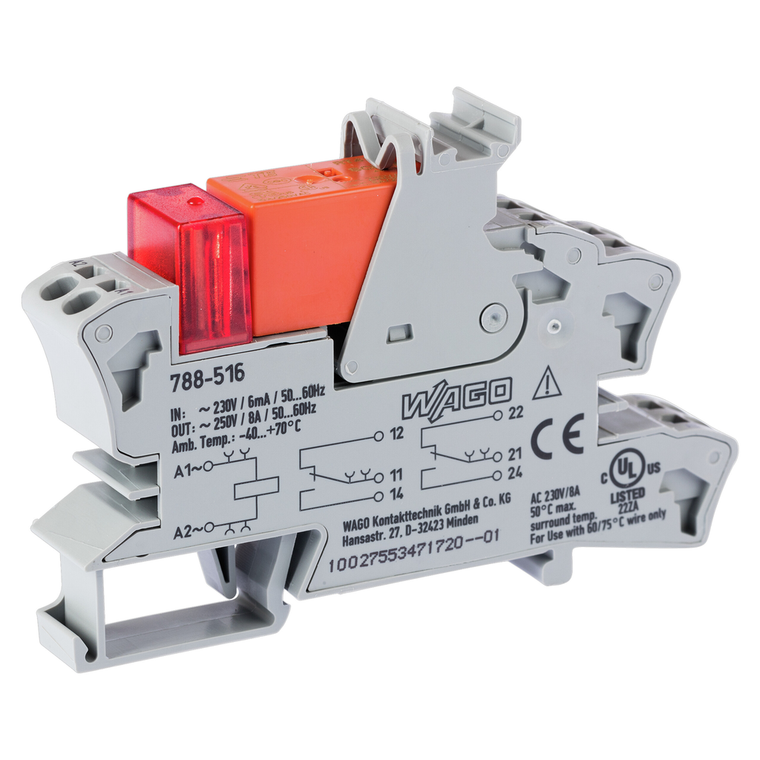

WAGO 788-516

SKU:

788-516

UPC:

MPN:

788-516

Condition:

New

bounce time typ:

10 ms

color:

Gray

connection technology:

Push-in CAGE CLAMP

contact material relay:

AgNi 90/10

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

54 mm / 2.126 inch

dielectric strength control load circuit ac 1 min:

5 kVrms

dielectric strength load load circuit ac 1 min:

2.5 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

drop out time typ:

35 ms

electrical life no resistive load 23 c:

10 x 103 switching operations

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.839 MJ

height:

86 mm / 3.386 inch

input voltage range:

10 %

inrush current resistive max:

(AC) 15 A / 4 s

limiting continuous current:

0.333333333333333

mechanical life:

30 x 106 switching operations

mounting type:

DIN-35 rail

nominal input current at un:

3.5 mA

nominal input voltage un:

AC 230 V

note:

Reinforced insulation between coil and contactsTo protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

number of changeover switchover contacts:

2

packaging type:

Box

pollution degree:

3

processing temperature:

-25 +50 C

protection type:

IP20

pull in time typ:

10 ms

rated surge voltage:

4 kV

rated voltage:

250 V

recommended minimum load:

12 V / 10 mA

safety information 1:

A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements.

solid conductor:

0.34 2.5 mm / 22 14 AWG

standards specifications:

EN 61010-2-201 || EN 61810-1 || EN 61373 || UL 508

status indicator:

Red LED

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air operating temperature for ul:

-40 50 C

surrounding air temperature operation at un:

-40 70 C

surrounding air temperature storage:

-40 70 C

switching capacity:

AC-15: 3 A / AC 250 V: DC-13: 2 A / DC 24 V

switching frequency with without load max:

6 min-1 / 1200 min-1

switching power resistive max:

AC 2000 VA: DC (see load limit curve)

switching voltage max:

AC 250 V

wago basic relay:

788-180

weight:

45.747 g

width:

15 mm / 0.591 inch
