Wago

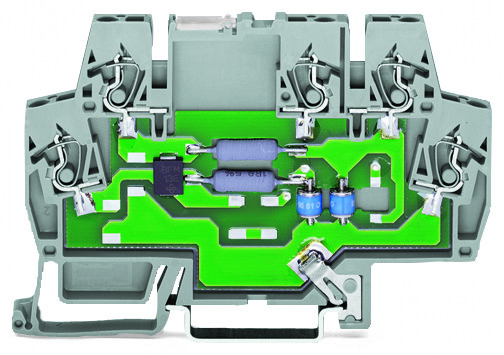

WAGO 792-801

SKU:

792-801

UPC:

MPN:

792-801

Condition:

New

capacitance line line:

10 nF

capacitance line protected ground:

5 pF

connection points number:

5

connection technology:

CAGE CLAMP

continuous operating voltage max:

AC 23 V / DC 33 V

country of origin sales organisation germany:

DE

depth:

91 mm / 3.583 inch

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.000 MJ

height from upper edge of din rail:

56 mm / 2.205 inch

impedance:

1.8

limit frequency line line:

6 MHz

limit frequency line protected ground:

6 MHz

mounting type:

DIN-35 rail

nominal current:

0.5 A

nominal discharge current 8 20 s line:

5 kA

nominal discharge current 8 20 s total:

10 kA

nominal operating voltage:

DC 24 V

note:

The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability.

packaging type:

Box

protection class with end and intermediate plate:

IP20

protection level line line cat c2 at in:

¤ 50 V

protection level line line cat c3 at in:

¤ 45 V

protection level line protected ground cat c2 at in:

¤ 750 V

protection level line protected ground cat c3 at in:

¤ 650 V

protection type:

IP00

response time line protected ground:

¤ 100 ns

solid conductor:

0.08 2.5 mm / 28 14 AWG

standards specifications:

IEC 61643-21

strip length:

5 6 mm / 0.2 0.24 inch

surrounding air temperature operation:

-40 80 C

surrounding air temperature storage:

-40 80 C

weight:

38.700 g

width:

6 mm / 0.236 inch
