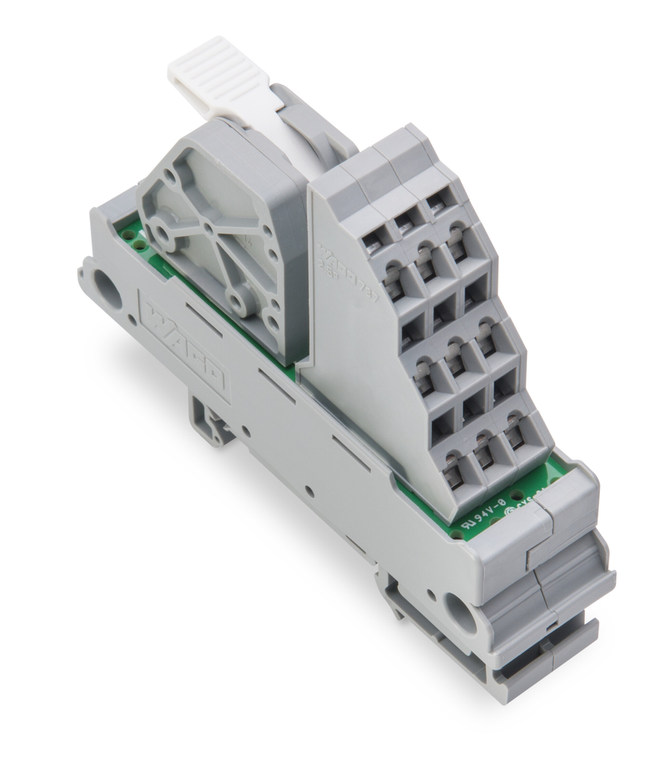

Potential distribution module; 1 potential; with 1 input clamping point; Conductor cross-section up to 16 mm; operating lever; with 9 output clamping points; Conductor cross-section up to 2.5 mm.
The WAGO 830 series potential distribution module is a gray unit designed for DIN-35 rail mounting, featuring one potential with nine output clamping points each capable of handling 16mm² and 10A output. It includes CAGE CLAMP spring connections and has a width of 21mm. This module is equivalent to the model number 830800000313.
- connection technology:
- CAGE CLAMP
- connection technology 2:
- CAGE CLAMP
- connection type 1:
- Input
- connection type 2:
- Output
- country of origin sales organisation germany:
- US
- current per connection max:
- 0.416666666666667
- depth:
- 85 mm / 3.35 inch
- fine stranded conductor:
- 1.5 16 mm / 16 6 AWG
- fine stranded conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- fire load:
- 0.841 MJ
- height from upper edge of din rail:
- 62 mm / 2.44 inch
- housing design:
- Mounting carrier
- mating direction:
- 30
- mating direction 2:
- Vertical
- mounting type:
- DIN-35 rail
- note conductor cross section:
- 12 AWG: THHN, THWN
- operating voltage:
- ¤ AC/DC 250 V
- packaging type:
- Box
- relative humidity:
- ¤ 95% (without condensation)
- solid conductor:
- 1.5 16 mm / 16 6 AWG
- solid conductor 2:
- 0.08 2.5 mm / 28 12 AWG
- standards specifications pending:
- CULus 61010-2-201
- strip length:
- 12 13 mm / 0.47 0.51 inch
- strip length 2:
- 5 6 mm / 0.2 0.24 inch
- surrounding air temperature operation:
- -20 50 C
- total current per potential max:
- 65 A
- total number of potentials:
- 1
- wago connector:
- WAGO 2716 Series
- wago connector 2:
- WAGO 737 Series
- weight:
- 61.940 g
- width:
- 21 mm / 0.81 inch
