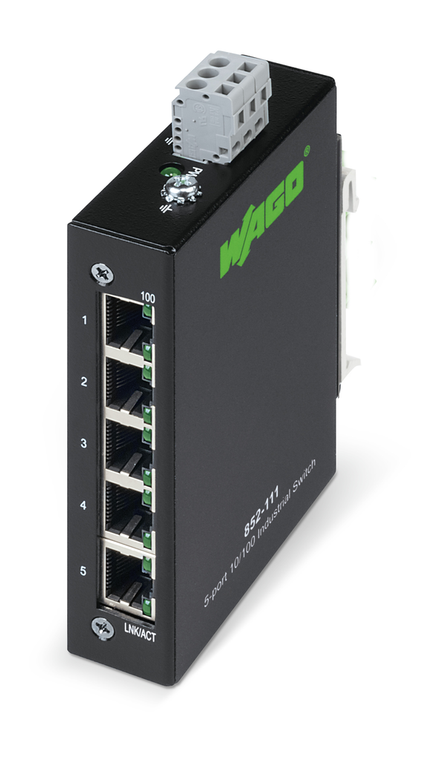

WAGO 852-111

(No reviews yet) Write a Review

Write a Review

WAGO 852-111

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

852-111

UPC:

MPN:

852-111

Condition:

New

baud rate:

Copper cable: 10/100 Mbit/s

color:

Black

communication standards:

IEEE 802.3 10BASE-T || IEEE 802.3u 100BASE-TX || IEEE 802.3x Flow Control

connection technology communication fieldbus:

Copper cable: 5 x RJ-45

connection technology supply:

1 x Built-in male connector: 231-433/001-000: included female connector (MCS Connectors): 231-103/026-000

country of origin sales organisation germany:

TW

depth:

73.8 mm / 2.906 inch

depth from upper edge of din rail:

81 mm / 3.189 inch

esd contact air discharge:

4 KV / 8 KV

fire load:

5.280 MJ

height:

109.2 mm / 4.299 inch

housing material:

Sheet steel

indicators:

Device: LED (PWR) green: Power supply: per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT port 1 5

jumbo frame size:

1536 Byte

mac table size:

2000 addresses

mounting type:

DIN-35 rail

number of 100base tx ports:

5

packaging type:

Box

power consumption max:

3 W

protection type:

IP30

relative humidity without condensation:

0.95

shock resistance:

Per IEC 60068-2-27

supply voltage:

18 30 VDC

surrounding air temperature operation:

-40 70 C (UL max. +60 C)

surrounding air temperature storage:

-40 80 C

switching mode:

Storeandforward: non-blocking

topology:

Star

transmission medium communication fieldbus:

Copper cable: Cat. 5 or higher, 100 m maximum cable length

vibration resistance:

Per IEC 60068-2-6

weight:

302.000 g

width:

23.4 mm / 0.921 inch
