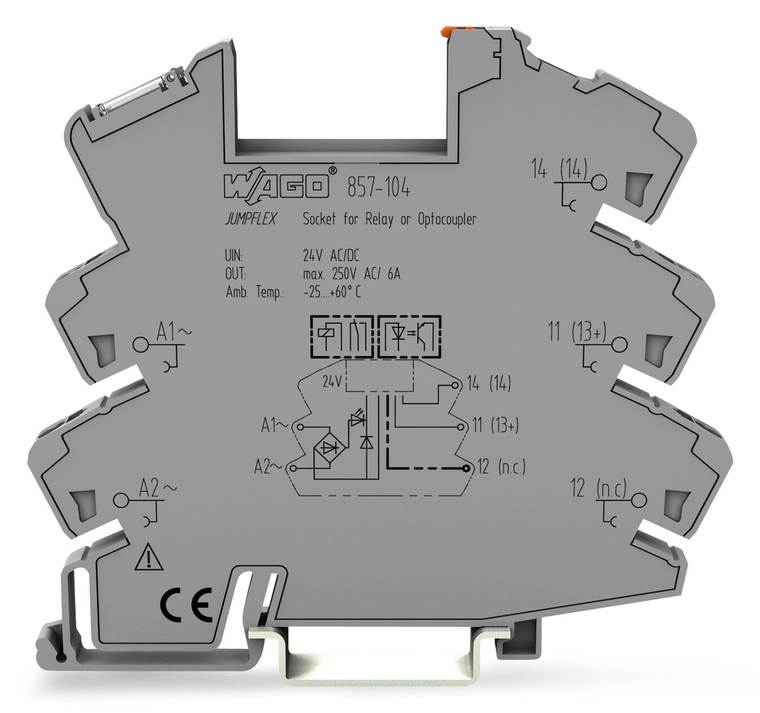

WAGO 857-104

(No reviews yet) Write a Review

Write a Review

WAGO 857-104

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

857-104

UPC:

MPN:

857-104

Condition:

New

circuit type:

Mains circuits

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

CN

depth from upper edge of din rail:

81 mm / 3.189 inch

dielectric strength control load circuit ac 1 min:

3.51 kVrms

dielectric strength open contact ac 1 min:

1 kVrms

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

insulation type between adjacent devices of the the same type:

Reinforced insulation (safe isolation)

insulation type control load circuit:

Reinforced insulation (safe isolation)

limiting continuous current:

0.25

mounting type:

DIN-35 rail

nominal input voltage un:

AC/DC 24 V

note:

The technical data might be influenced by the used relay/SSR.

operating altitude max:

2000 m

overvoltage category:

III

packaging type:

Box

pollution degree:

2

protection type:

IP20

rated surge voltage:

4 kV

rated voltage:

300 V

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.34 2.5 mm / 22 14 AWG

standards specifications:

EN 61010-2-201 || UR

status indicator:

Yellow LED

strip length:

9 10 mm / 0.35 0.39 inch

surrounding air temperature operation at un:

-40 70 C

surrounding air temperature storage:

-40 70 C

switching voltage max:

AC 250 V

weight:

26.320 g

width:

6 mm / 0.236 inch
