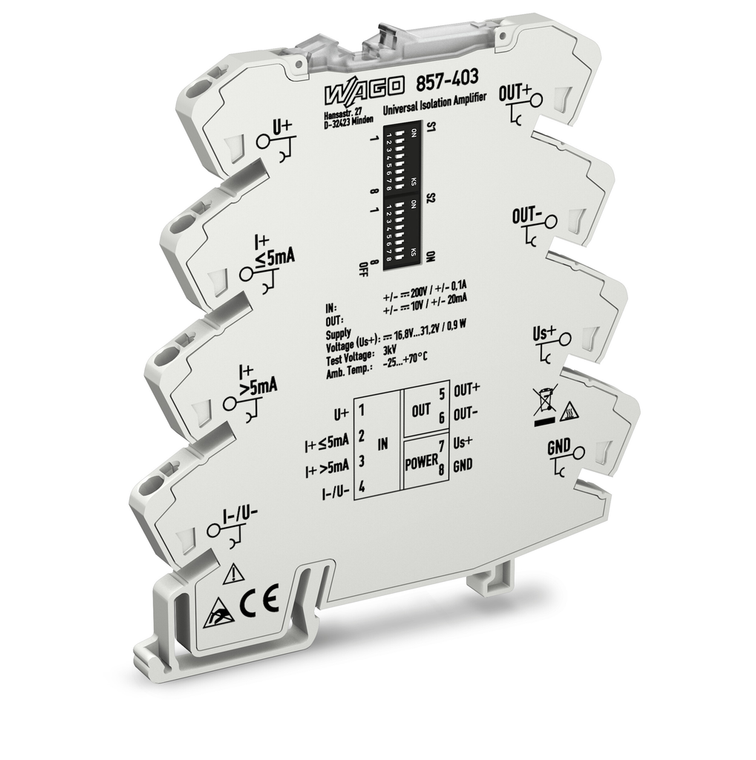

WAGO 857-403

(No reviews yet) Write a Review

Write a Review

WAGO 857-403

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

857-403

UPC:

MPN:

857-403

Condition:

New

configuration options:

DIP switch

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

97.8 mm / 3.85 inch

emc emission of interference:

EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input resistance current input:

10 ( 5 mA): 100 (¤ 5 mA)

input resistance voltage input:

1 M

input signal current:

0.3 mA: 0 0.3 mA: 1 mA: 0 1 mA: 5 mA: 0 5 mA: 10 mA: 0 10 mA: 2 10 mA: 20 mA: 0 20 mA: 4 20 mA: 50 mA: 0 50 mA: 100 mA: 0 100 mA

input signal type:

Voltage || Current

input signal voltage:

60 mV: 0 60 mV: 100 mV: 0 100 mV: 150 mV: 0 150 mV: 300 mV: 0 300 mV: 500 mV: 0 500 mV: 1 V: 0 1 V: 5 V: 0 5 V: 1 5 V: 10 V: 0 10 V: 2 10 V: 100 V: 0 100 V: 200 V:

insulation type input supply analog output relay output:

Reinforced insulation

limit frequency:

100 Hz / 5 kHz (configurable via DIP switch)

load impedance current output:

¤ 600

load impedance voltage output:

2 k

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V

operating altitude max:

2000 m

output signal current:

10 mA: 0 10 mA: 2 10 mA: 20 mA: 0 20 mA: 4 20 mA

output signal type:

Current || Voltage

output signal voltage:

5 V: 0 5 V: 1 5 V: 10 V: 0 10 V: 2 10 V

packaging type:

Bag

power consumption at nominal supply voltage:

¤ 40 mA

power supply type:

24 VDC

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

standards specifications:

EN 61010-1

step response typ:

3.5 ms (100 Hz): 100 s (5 kHz)

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

¤ 0,01 %/K

temperature range of connecting cable per ul 61010 2 201 min:

90 C

test voltage input output supply:

AC 3 kV: 50 Hz: 1 min

transmission error typ:

¤ 0.08 % of upper-range value

weight:

39.892 g

width:

6 mm / 0.236 inch
