- Input overcurrent protection via resettable fuse
- Zero/span adjustment across the entire measuring range
- Switching between measuring ranges is calibrated
- Analog, unipolar and bipolar, standard signals at input/output
- Switchable max. operating frequency

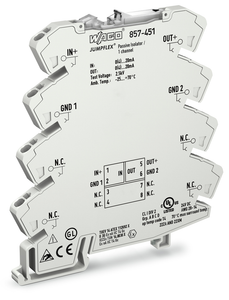

The WAGO 857 series single-channel bipolar isolation amplifier features a DIP switch and supports a variety of analog input and output ranges, including current (-10 to +10mA, -20 to +20mA, 0-10mA, 2-10mA, 0-20mA, 4-20mA) and voltage (-5 to +5Vdc, -10 to +10Vdc, 0-5Vdc, 1-5Vdc, 0-10Vdc, 2-10Vdc). It operates on a supply voltage of 16.8-26.4Vdc (24Vdc nominal) and features Push-in CAGE CLAMP spring connections for easy installation on a DIN-35 rail with a compact 6mm width. The device is rated for an ambient temperature range of -25°C to +70°C and has an IP20 protection rating, equivalent to model 857409.
- type of isolation input analog output supply:
- Reinforced insulation
- cable type:
- Shielded cable
- configuration options:
- DIP switch
- conformity marking:
- CE
- connection technology:
- Push-in CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 97.8 mm / 3.85 inch
- emc emission of interference:
- EN 61000-6-3
- emc immunity to interference:
- EN 61000-6-2
- fine stranded conductor:
- 0.34 2.5 mm / 22 14 AWG
- fire load:
- 0.000 MJ
- height:
- 94 mm / 3.701 inch
- input current max:
- 50 mA
- input resistance current input:
- ¤ 50
- input resistance voltage input:
- 1 M
- input signal current:
- 10 mA: 0 10 mA: 2 10 mA: 20 mA: 0 20 mA: 4 20 mA
- input signal type:
- Voltage || Current
- input signal voltage:
- 5 V: 0 5 V: 1 5 V: 10 V: 0 10 V: 2 10 V
- input voltage max:
- 32 V
- limit frequency:
- 100 Hz / 5 kHz (configurable via DIP switch)
- line to neutral conductor voltage ac max:
- 300 V
- load impedance current output:
- ¤ 600
- load impedance voltage output:
- 2 k
- mounting type:
- DIN-35 rail
- nominal supply voltage us:
- DC 24 V
- operating altitude max:
- 2000 m
- output signal current:
- 10 mA: 0 10 mA: 2 10 mA: 20 mA: 0 20 mA: 4 20 mA
- output signal type:
- Current || Voltage
- output signal voltage:
- 5 V: 0 5 V: 1 5 V: 10 V: 0 10 V: 2 10 V
- overvoltage category:
- II
- packaging type:
- Bag
- pollution degree:
- 2
- power consumption at nominal supply voltage:
- ¤ 40 mA (Default: < 20 mA)
- power supply type:
- 24 VDC
- processing temperature:
- -25 +50 C
- relative humidity:
- 5 95 % (no condensation permissible)
- residual ripple:
- ¤ 10 mV (rms)
- solid conductor:
- 0.08 2.5 mm / 28 14 AWG
- standards specifications:
- EN 61010-1 || EN 61373
- step response typ:
- 3.5 ms (100 Hz): 68 s (5 kHz)
- strip length:
- 9 10 mm / 0.35 0.39 inch
- supply voltage range:
- 30 %
- surrounding air temperature operation:
- -25 70 C
- surrounding air temperature storage:
- -40 85 C
- temperature coefficient:
- ¤ 0.01 %/K
- temperature range of the connecting cable according to en 61010 2 201:
- (Tsurrounding air + 10 K)
- test voltage input analog output supply:
- AC 3 kV: 50 60 Hz: 1 min
- test voltage input output supply:
- AC 3 kV: 50 Hz: 1 min
- transmission error max:
- ¤ 0.2 % of upper-range value
- transmission error typ:
- ¤ 0.1 % of upper-range value
- weight:
- 38.400 g
- width:
- 6 mm / 0.236 inch
- zero span adjustment:
- 5 % of upper-range value
