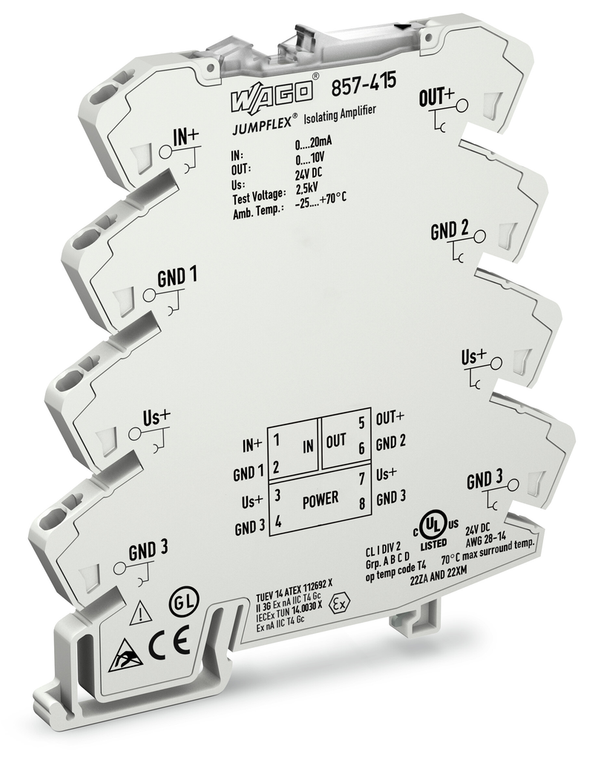

WAGO 857-415

(No reviews yet) Write a Review

Write a Review

WAGO 857-415

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

857-415

UPC:

MPN:

857-415

Condition:

New

configuration options:

Pre-configured

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

97.8 mm / 3.85 inch

emc emission of interference:

EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input current max:

50 mA

input resistance current input:

¤ 50

input signal current:

0 20 mA

input signal type:

Current

limit frequency:

100 Hz

load impedance voltage output:

2 k

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V

note:

The 3 (Us+), 7 (Us+), 4 (GND 3) and 8 (GND 3) connections are internally commoned.Current carrying capacity between 3/4 and 7/8 connections: 1 A (max.)

operating altitude max:

2000 m

output signal type:

Voltage

output signal voltage:

0 10 V

packaging type:

Bag

power consumption at nominal supply voltage:

¤ 25 mA

power supply type:

24 VDC

relative humidity:

5 95 % (no condensation permissible)

solid conductor:

0.08 2.5 mm / 28 14 AWG

step response typ:

3.5 ms

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

¤ 0.01 %/K

test voltage input output supply:

AC 2.5 kV: 50 Hz: 1 min

transmission error typ:

¤ 0.1 % of upper-range value

weight:

35.310 g

width:

6 mm / 0.236 inch
