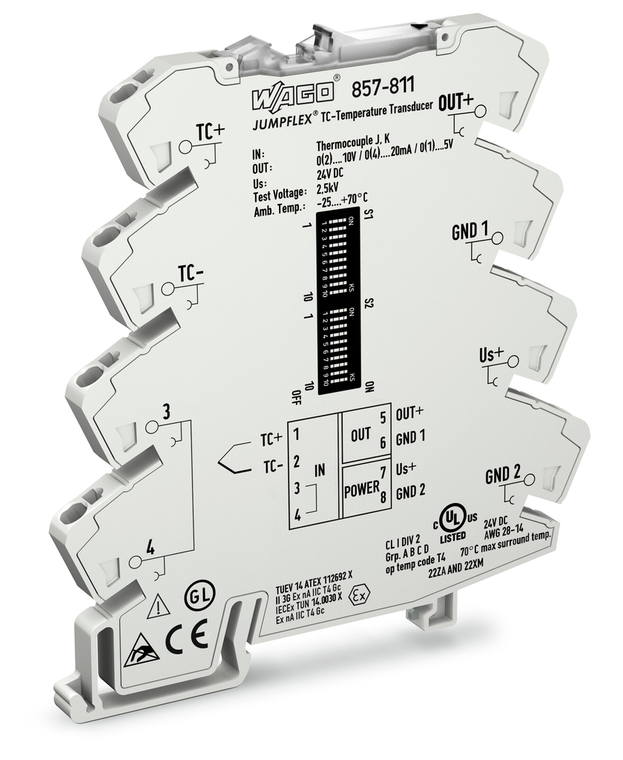

WAGO 857-811

(No reviews yet) Write a Review

Write a Review

WAGO 857-811

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

857-811

UPC:

MPN:

857-811

Condition:

New

cold junction compensation:

ON/OFF (default: ON)

cold junction error:

3 K (typ. 2 K )

color:

Light gray

configuration options:

DIP switch || WAGO Interface Configuration Software || WAGO Interface Configuration App

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

97.8 mm / 3.85 inch

emc emission of interference:

EN 61000-6-4

emc immunity to interference:

EN 61000-6-2

fine stranded conductor:

0.34 2.5 mm / 22 14 AWG

fire load:

0.000 MJ

height:

94 mm / 3.701 inch

input signal type:

TC sensors

load impedance current output:

¤ 600

load impedance voltage output:

2 k

measurement span min tc:

100 K

mounting type:

DIN-35 rail

nominal supply voltage us:

DC 24 V

note:

Additional setting options as well as output signal inversion via WAGO Interface Configuration Software or WAGO Interface Configuration App

operating altitude max:

2000 m

output signal current:

0 10 mA: 2 10 mA: 0 20 mA: 4 20 mA

output signal type:

Current || Voltage

output signal voltage:

0 5 V: 1 5 V: 0 10 V: 2 10 V

packaging type:

Bag

power consumption at nominal supply voltage:

¤ 40 mA

power supply type:

24 VDC

relative humidity:

5 95 % (no condensation permissible)

sensor types tc:

Type J || Type K

solid conductor:

0.08 2.5 mm / 28 14 AWG

step response typ:

60 ms (Cold junction compensation (Off)): 120 ms (Cold junction compensation (ON))

strip length:

9 10 mm / 0.35 0.39 inch

supply voltage range:

30 %

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-40 85 C

temperature coefficient:

¤ 0.04 %/K

temperature measurement range tc:

-150 1200 C (Type J): -150 1350 C (Type K)

test voltage input output supply:

AC 2.5 kV: 50 Hz: 1 min

transmission error for the set measurement range:

¤ (150 K/set measurement range [K]) %

transmission error typ:

¤ 0.1% at max. measurement span (type J, K)

weight:

36.000 g

width:

6 mm / 0.236 inch
