| Description | Pluggable industrial relay; 24 VDC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Remarks | Note: *To prevent the gold layer from being damaged, 30 VDC switching voltages and 50 mA currents shall not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce the service life. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Item properties | Miscellaneous
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

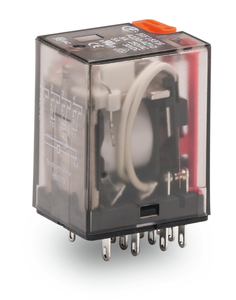

The WAGO 858 series replacement plug-in relay features manual operation and a red LED indicator. It is a 4-pole (4P) relay with a control voltage of 24Vdc and 4C/O (4 Pole Double Throw) contacts. This electromechanical relay has a rated current of 50mA at 30Vdc (DC-13) to prevent gold flash evaporation. It includes push-in connections and is designed for plug-in mounting with an IP20 protection rating. The contacts are made of hard gold-plated silver-cerium (AgCe + Au), and it is equivalent to model 858152.
- bounce time typ:
- 4 ms
- contact material relay:
- AgCe + Au
- country of origin sales organisation germany:
- CN
- depth:
- 28 mm / 1.102 inch
- dielectric strength control load circuit ac 1 min:
- 1.5 kVrms
- dielectric strength load load circuit ac 1 min:
- 1.5 kVrms
- dielectric strength open contact ac 1 min:
- 1 kVrms
- drop out time typ:
- 25 ms
- electrical life no resistive load 23 c:
- 100 x 103 switching operations
- fire load:
- 0.000 MJ
- height from the surface:
- 35 mm / 1.378 inch
- inrush current resistive max:
- (AC) 15 A / 4 s
- limiting continuous current:
- 0.208333333333333
- mechanical life:
- 20 x 106 switching operations
- mounting type:
- Pluggable module
- nominal input current at un:
- 36.9 mA
- nominal input voltage un:
- DC 24 V
- note:
- To prevent damaging the gold layer, 30 VDC switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life.
- number of changeover switchover contacts:
- 4
- packaging type:
- BOX
- protection type:
- IP20
- pull in time typ:
- 25 ms
- recommended minimum load:
- 5 V / 1 mA / 50 mW
- standards specifications:
- EN 61810-1
- status indicator:
- Red LED || Mechanical
- surrounding air temperature operation at un:
- -25 70 C
- surrounding air temperature storage:
- -40 80 C
- switching power resistive max:
- AC 1250 VA: DC (see load limit curve)
- switching voltage max:
- AC 250 V
- weight:
- 35.000 g
- width:
- 21.5 mm / 0.846 inch
