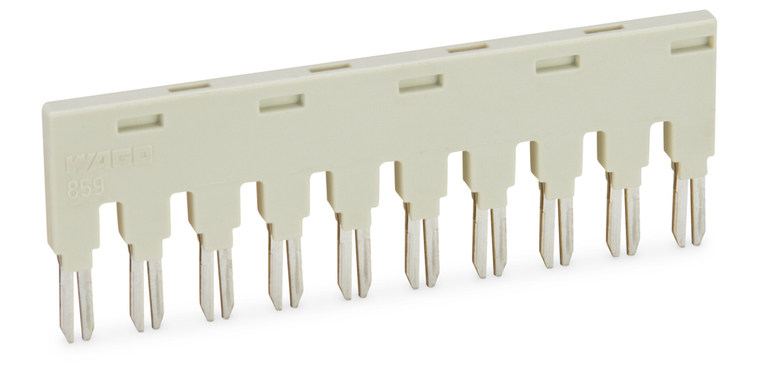

Push-in type jumper bar; Light gray; Insulated; 18 A; 10-position.
The WAGO 859 series insulated push-in type comb-style jumper bar is a 10-way, 10-pole (10P) component with a rated current of 18A. It is light gray in color and is equivalent to the model number 859410.
- color:
- Light gray
- country of origin sales organisation germany:
- DE
- depth:
- 2.5 mm / 0.098 inch
- fire load:
- 0.053 MJ
- height:
- 21.5 mm / 0.846 inch
- main product function:
- Jumper
- packaging type:
- Box
- rated current:
- 18 A
- weight:
- 5.490 g
- width:
- 58 mm / 2.283 inch
