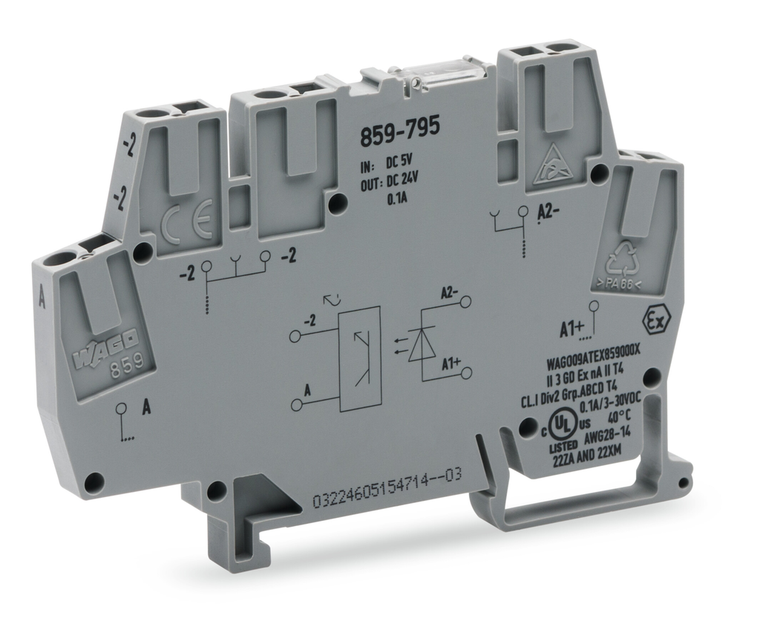

Optocoupler terminal block; for low switching power
Technical Data
- Nominal input voltage U<sub>N</sub>: DC 5 V
- Input voltage range (low level): DC 0 0.8 V
- Input voltage range (high level): DC 2 6.25 V
- Nominal input current at U<sub>N</sub>: 17 mA
- Circuit type: 2-conductor termination
- Limiting continuous current: 0.1 A
- Nominal output voltage: DC 24 V
- Output voltage range: DC 3 30 V
- Max. voltage drop at output: nbsp;DC 1 V
- Leakage current at nominal voltage: nbsp;25 A
- Turn-on time: nbsp;10 s
- Drop-out time: nbsp;50 s
- Switching frequency: nbsp;10 kHz
- Status indication: LED red
- Dielectric strength, control/load circuit (AC, 1 min): 2.5 kVrms
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 5 6 mm / 0.2 0.24 inch
Geometrical Data
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 56 mm / 2.205 inch
- Depth: 91 mm / 3.583 inch
Mechanical Data
- Type of mounting: DIN-35 rail
Material Data
- Color: gray
- Fire load: 0.000 MJ
- Weight: 18.329 g
Environmental Requirements
- Surrounding air (operating) temperature at U<sub>N</sub>: -40 70 C
- Surrounding air (storage) temperature: -40 70 C
- Processing temperature: -25 +50 C
Standards and specifications
- Standards/specifications: EN 60664-1; EN 61000-6-3; EN 61000-6-4; EN 50121-3-2; EN 61373; UL 508
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4055143606462
- Customs Tariff No.: 85365005000
The WAGO 859 series fixed-type solid-state relay (SSR) is designed for railway applications and features a red LED indicator. It has a 2-wire connection and is single-pole, single-phase with a control voltage range of 2-6.25Vdc (nominal 5Vdc). The relay's output is rated for 3Vdc-30Vdc (nominal 24Vdc) and can handle a continuous current of 0.1A. It includes CAGE CLAMP connections and is mounted on a DIN-35 rail with a width of 6mm. This relay is equivalent to model 859795.
