Description
Technical Data
- Nominal input voltage U<sub>i nom</sub>: DC 24 V
- Input voltage range: DC 15 30 V
- Nominal mains frequency range: 0 Hz
- Mains failure hold-up time: nbsp;0.5 ms
- Nominal output voltage U<sub>o nom</sub>: DC 10 V
- Output voltage range: 2 %
- Nominal output current I<sub>o nom</sub>: 0.5 A
- Line regulation: nbsp;0.5 %
- Mains/load regulation: nbsp;0.7 %
- Residual ripple: nbsp;20 mV
- Switching frequency: 20 kHz (nominal)
- Overload behavior: Temporary without damage (short-circuit of the output for 1 minute)
- Signaling: 1 x LED
- Efficiency (typ.): 85 %
- Internal fuse: TVS diode
- Protection class: IP20 (per EN 60529)
- Reverse voltage protection: yes
- Series connection: No
Connection Data
- Number of jumper slots: 2
- Connection technology: CAGE CLAMP<sup></sup>
- WAGO terminal: WAGO 859 Series
- Solid conductor: 0.08 2.5 mm / 28 14 AWG
- Fine-stranded conductor: 0.08 2.5 mm / 28 14 AWG
- Strip length: 5 6 mm / 0.2 0.24 inch
Geometrical Data
- Width: 6 mm / 0.236 inch
- Height from upper-edge of DIN-35 rail: 56 mm / 2.205 inch
- Depth: 91 mm / 3.583 inch
Mechanical Data
- Type of mounting: DIN-35 rail (EN 60715)
Material Data
- Color: gray
- Fire load: 0.000 MJ
- Weight: 41.100 g
Environmental Requirements
- Surrounding air (operating) temperature: -25 55 C
- Pollution degree: 2
Standards and specifications
- Conformity marking: CE
Commercial data
- Packaging type: BOX
- Country of origin: US
- GTIN: 4050821083313
- Customs Tariff No.: 85044082900

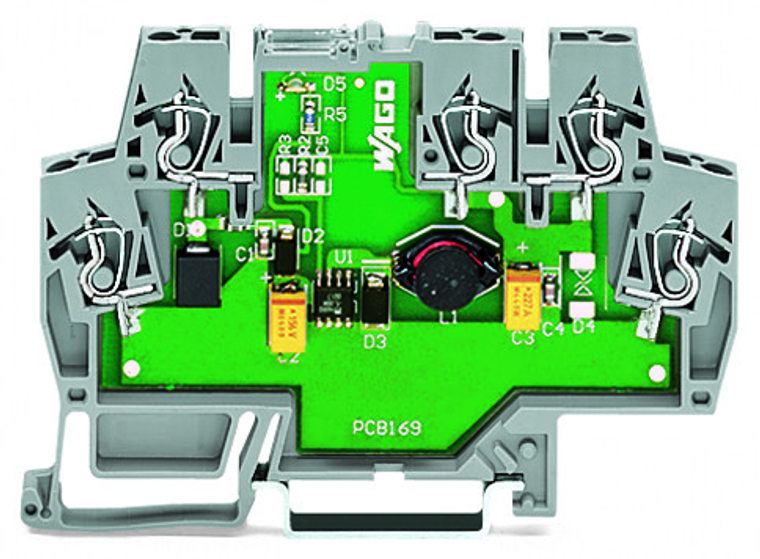

The WAGO 859 series DC/DC power supply unit (PSU) or converter module provides a 10Vdc output at 0.5A and 5W, with an input voltage range of 15-30Vdc (nominally 24Vdc). It features CAGE CLAMP spring connections, is designed for DIN-35 rail mounting with a 6mm width, and has an IP20 protection rating. The unit operates in ambient temperatures from -25°C to +55°C and is equivalent to model 859802.
