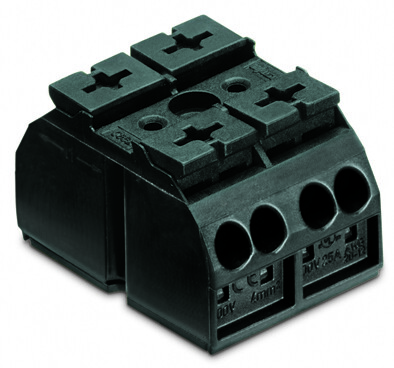

WAGO 862-552 Panel Mount Terminal Block, 2-Row, 2-Position, 32A, 500V, 20-12 AWG
Wago
$1.29
4-conductor chassis-mount terminal strip; without ground contact; 2-pole; for 3 mm ø screw and nut; with 2x pin; 4 mm²; 4,00 mm²; black.
The WAGO 862 series feed-through chassis-mount terminal strip is a black, 1-deck/level component with buttons on both sides, featuring 2 feed-through poles and 8 push-in wire connections (4+4). It supports wire sizes from 0.5mm² to 4mm² (#20AWG to #12AWG) and is rated for a current of 32A. The terminal strip utilizes Push-in CAGE CLAMP spring connections and is mounted using a 3mm screw and nut. It is equivalent to the model 862552.
- Color:
- Light Gray
- conformity marking:
- CE
- country of origin sales organisation germany:
- DE
- depth:
- 69.8 mm / 2.748 inch
- depth from upper edge of din rail:
- 62.6 mm / 2.465 inch
- emc emission of interference:
- Per EN 61000-6-4
- emc immunity to interference:
- Per EN 61000-6-2
- exposure to pollutants:
- Per IEC 60068-2-42 and IEC 60068-2-43
- fire load:
- 1.002 MJ
- height:
- 100 mm / 3.937 inch
- housing material:
- Polycarbonate: polyamide 6.6
- mounting position:
- Horizontal (standing/lying): vertical
- mounting type:
- DIN-35 rail
- number of incoming power jumper contacts:
- 3
- number of outgoing power jumper contacts:
- 3
- operating altitude:
- 0 2000 m
- packaging type:
- Box
- permissible h2s contaminant concentration at a relative humidity 75:
- 10 ppm
- permissible so2 contaminant concentration at a relative humidity 75:
- 25 ppm
- pollution degree 5:
- 2 per IEC 61131-2
- protection type:
- IP20
- relative humidity without condensation:
- 0.95
- shock resistance:
- 15g per IEC 60068-2-27
- supply voltage system:
- 5 VDC: via data contacts
- surrounding air temperature operation:
- 0 55 C
- surrounding air temperature storage:
- -40 85 C
- vibration resistance:
- 4g per IEC 60068-2-6
- weight:
- 38.500 g
- width:
- 12 mm / 0.472 inch
