Wago

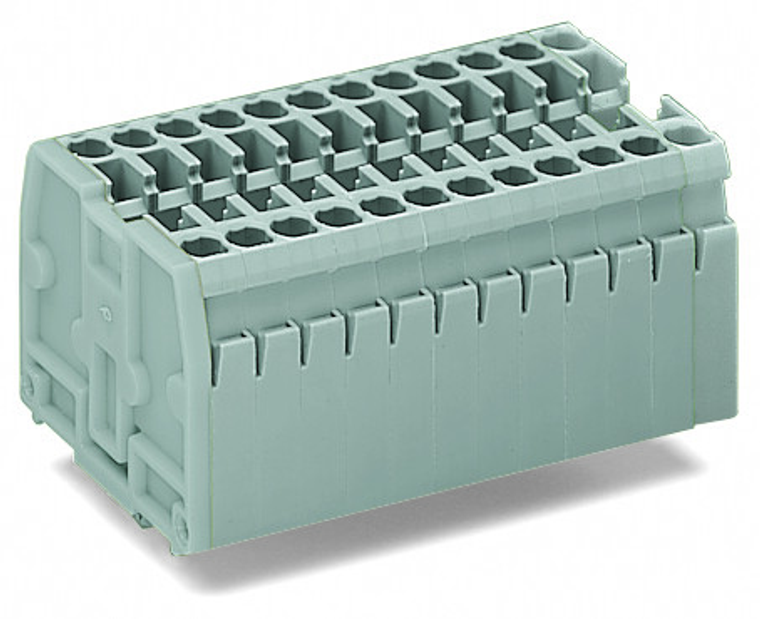

WAGO 869-183

SKU:

869-183

UPC:

MPN:

869-183

Condition:

New

actuation type:

Operating tool

color:

Light gray

connectable conductor materials:

Copper

connection technology:

CAGE CLAMP

country of origin sales organisation germany:

DE

depth:

33.4 mm / 1.315 inch

design:

Horizontal type

fine stranded conductor:

0.08 4 mm / 28 12 AWG

fine stranded conductor with insulated ferrule:

0.08 1.5 mm / 28 14 AWG

fire load:

0.264 MJ

flammability class per ul94:

V0

height from the surface:

27.6 mm / 1.087 inch

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

module width:

5 mm / 0.197 inch

mounting type:

Snap-in foot

nominal voltage iii 3:

500 V

packaging type:

Box

pole no:

3

rated current:

24 A

rated surge voltage iii 3:

6 kV

safety information 1:

Max. insulation diameter: 4.4 mm

solid conductor:

0.08 2.5 mm / 28 12 AWG

strip length:

6 7 mm / 0.24 0.28 inch

weight:

13.763 g

width:

17.5 mm / 0.689 inch

wiring direction:

Front-entry wiring
