Wago 870-914

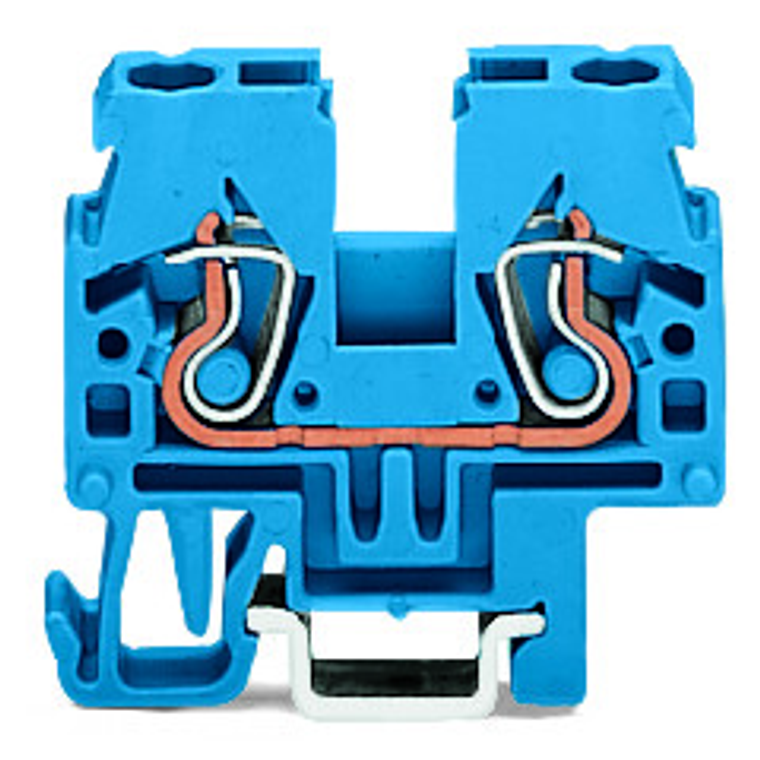

WAGO 870-914 2-conductor through terminal block; 2.5 mm²; suitable for Ex i applications; side and center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; blue

Wago
SKU:
51128902
$1.73
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
2-conductor through terminal block; 2.5 mm²; suitable for Ex i applications; side and center marking; for DIN-15 rail; CAGE CLAMP; 2,50 mm²; blue.

The WAGO 870 X-COM series neutral-through terminal block is a blue, single-deck terminal block with side and center marking slots, designed for Ex I applications. It features a neutral-through pole (N) with two wire connections (1 clamp + 1 clamp) suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block supports a rated current of 24A and utilizes CAGE CLAMP spring connections for secure and reliable wiring. It is designed for DIN-15 rail mounting with a 5mm width and is equivalent to model 870914.

Additional Information
actuation type:
Operating tool
color:
Blue
connectable conductor materials:
Copper
connection technology:
CAGE CLAMP
country of origin sales organisation germany:
DE
depth from upper edge of din rail:
26.5 mm / 1.043 inch
design:
Horizontal type
fine stranded conductor:
0.08 4 mm / 28 12 AWG
fine stranded conductor with insulated ferrule:
0.08 1.5 mm / 28 14 AWG
fire load:
0.070 MJ
flammability class per ul94:
V0
height:
34.5 mm / 1.358 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
marking level:
Side marking
mounting type:
DIN-15 rail
nominal voltage iii 3:
500 V
packaging type:
Box
rated current:
24 A
rated surge voltage iii 3:
6 kV
ratings per:
IEC/EN 60947-7-1
safety information 1:
Max. insulation diameter: 4.4 mm
solid conductor:
0.08 2.5 mm / 28 12 AWG
strip length:
6 7 mm / 0.24 0.28 inch
weight:
3.991 g
width:
5 mm / 0.197 inch
wiring direction:
Front-entry wiring
