Wago

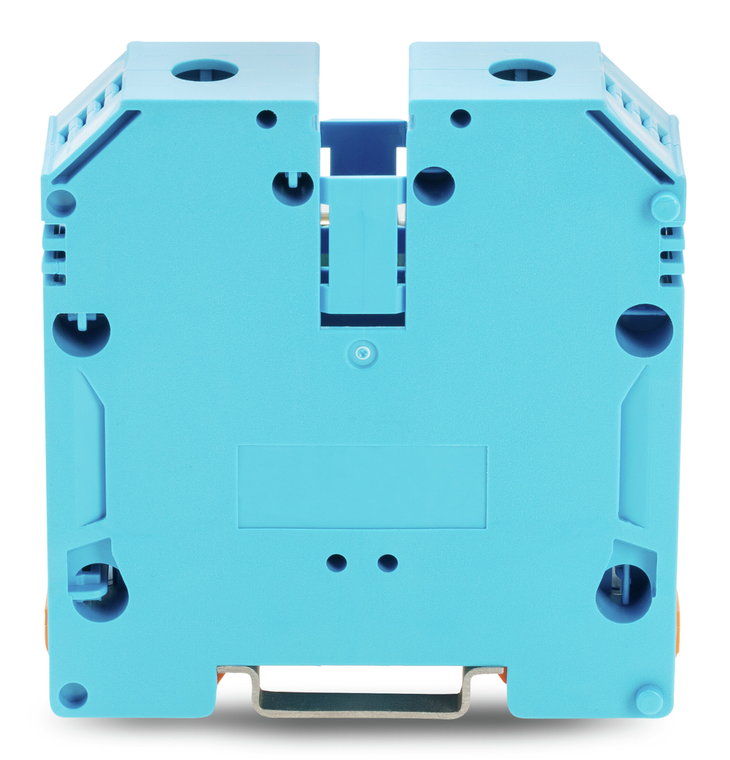

WAGO 883-7004 Pack of 10

SKU:

883-7004

UPC:

MPN:

883-7004

Condition:

New

actuation type:

T-wrench: 6 mm

approvals per:

UL 1059

color:

Blue

connectable conductor materials:

Copper

connection technology:

Screw-type connection

continuous operating temperature:

-35 +105 C

country of origin sales organisation germany:

DE

depth from upper edge of din rail:

84 mm / 3.307 inch

design:

Horizontal type

fine stranded conductor:

10 70 mm / 8 2/0 AWG

fine stranded conductor with insulated ferrule:

10 70 mm / 8 2/0 AWG

fire load:

0.000 MJ

flammability class per ul94:

V0

height:

76.5 mm / 3.012 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

marking level:

Side marking

mounting type:

DIN-rail 35 x 7.5

nominal cross section:

70 mm

nominal voltage iii 3:

1000 V

packaging type:

Box

rated current:

192 A

rated current 2:

232 A

rated current csa use group b:

205 A

rated current csa use group c:

205 A

rated current csa use group d:

205 A

rated current ul use group b:

205 A

rated current ul use group c:

205 A

rated current ul use group d:

205 A

rated surge voltage iii 3:

8 kV

rated voltage csa use group b:

600 V

rated voltage csa use group c:

600 V

rated voltage csa use group d:

600 V

rated voltage ul use group b:

600 V

rated voltage ul use group c:

600 V

rated voltage ul use group d:

600 V

ratings per:

IEC/EN 60947-7-1

screw thread:

M8

solid conductor:

10 95 mm / 8 3/0 AWG

stranded conductor:

10 95 mm / 8 3/0 AWG

strip length:

22 mm / 0.87 inch

tightening torque:

6 12 Nm

weight:

141.000 g

width:

20.5 mm / 0.807 inch

wiring direction:

Side-entry wiring
