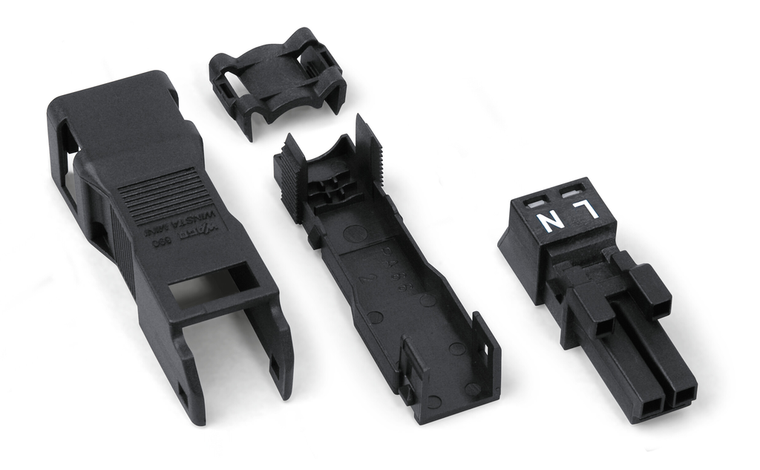

WAGO 890-102 Socket with strain relief housing; 2-pole; black
Wago
$3.82
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 890-102 Socket with strain relief housing; 2-pole; black
Socket; with strain relief housing; 2-pole; Cod. A; 1,50 mm²; black.
The WAGO component equivalent to 890102 is a specific part or module used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring seamless integration and communication within various industrial applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the field.
- actuation type:
- Operating tool || Push-in
- application:
- General mains applications
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- coding:
- A
- color:
- Black
- conductor entry direction to mating direction:
- 0
- connectable sheathed cable diameter:
- 3.8 8.2 mm
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Copper or copper alloy (surface-treated)
- contact type pluggable connector:
- Female connector/socket
- continuous operating temperature:
- -35 +85 C
- country of origin sales organisation germany:
- DE
- depth:
- 61.6 mm / 2.425 inch
- fine stranded conductor:
- 0.25 1.5 mm / 22 16 AWG
- fine stranded conductor with ferrule push in termination:
- 0.75 mm / 20 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fine stranded conductor with uninsulated ferrule:
- 0.25 0.75 mm / 22 20 AWG
- fire load:
- 0.020 MJ
- height:
- 13.2 mm / 0.52 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- locking lever:
- Can be retrofitted
- locking of plug in connection:
- Locking lever
- marking:
- L N
- mating force of a plug in connection:
- Approx. 20 70 N (depending on pole number)
- mismating protection:
- Yes
- nominal cross section:
- 1.5 mm
- nominal voltage iii 3:
- 250 V
- note on continuous operating temperature:
- Insulating parts for temperatures ¤ 105 C
- note on mismating protection:
- All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
- number of mating cycles:
- 200, without resistive load
- packaging type:
- Box
- pin spacing:
- 4.4 mm / 0.173 inch
- pole no:
- 2
- processing temperature:
- -5 +40 C
- protection class:
- IP40
- rated current:
- 16 A
- rated current ul 1977:
- 14 A
- rated surge voltage iii 3:
- 4 kV
- rated voltage ul 1977:
- 600 V
- ratings per:
- IEC/EN 60664-1
- retention force of a plug in connection:
- Locked: > 80 N
- solid conductor:
- 0.25 1.5 mm / 22 16 AWG
- solid conductor push in termination:
- 0.75 1.5 mm / 20 16 AWG
- strain relief:
- Strain relief housing
- stranded conductor:
- 0.25 1 mm / 22 18 AWG
- strip length:
- 9 mm / 0.35 inch
- strip length outer insulation:
- 32 mm
- unmating force of a plug in connection:
- Unlocked: approx. 20 70 N (depending on pole number)
- weight:
- 5.710 g
- width:
- 15.6 mm / 0.614 inch
