Wago

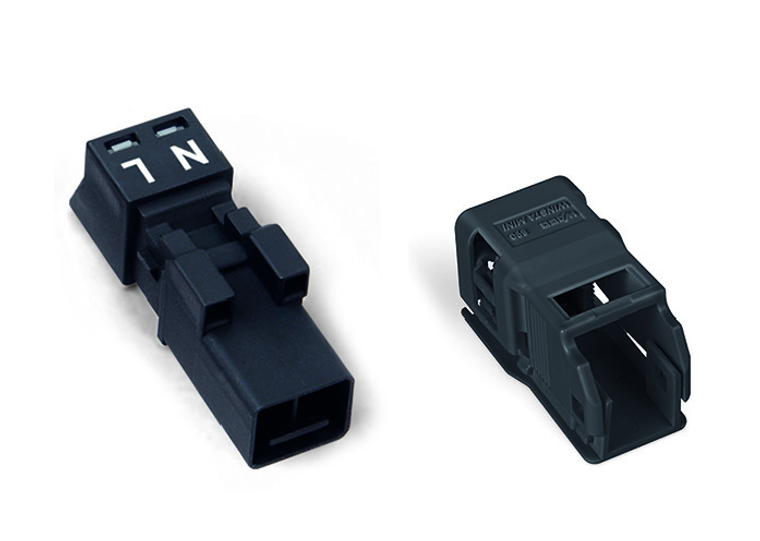

WAGO 890-212/342-000 Pack of 50

SKU:

890-212/342-000

UPC:

MPN:

890-212/342-000

Condition:

New

actuation type:

Operating tool || Push-in

application:

General mains applications

clamping spring material:

Chrome nickel spring steel (CrNi)

coding:

A

color:

Black

conductor entry direction to mating direction:

0

connectable sheathed cable diameter:

3.8 8.2 mm

connection technology:

Push-in CAGE CLAMP

connector connection type:

For conductor

contact material:

Copper or copper alloy (surface-treated)

contact type pluggable connector:

Male connector/plug

continuous operating temperature:

-35 +85 C

country of origin sales organisation germany:

DE

depth:

46.5 mm / 1.831 inch

fine stranded conductor:

0.25 1.5 mm / 22 16 AWG

fine stranded conductor with ferrule push in termination:

0.75 mm / 20 AWG

fine stranded conductor with insulated ferrule:

0.25 0.75 mm / 22 20 AWG

fine stranded conductor with uninsulated ferrule:

0.25 0.75 mm / 22 20 AWG

fire load:

0.120 MJ

height:

13.2 mm / 0.52 inch

insulation material:

Polyamide (PA66)

legend ratings:

(III / 3) Overvoltage category III / Pollution degree 3

locking lever:

Can be retrofitted

locking of plug in connection:

Locking lever

marking:

L N

mating force of a plug in connection:

Approx. 20 70 N (depending on pole number)

mismating protection:

Yes

nominal cross section:

1.5 mm

nominal voltage iii 3:

250 V

note on continuous operating temperature:

Insulating parts for temperatures ¤ 105 C

note on mismating protection:

All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole

number of mating cycles:

200, without resistive load

packaging type:

Box

pin spacing:

4.4 mm / 0.173 inch

pole no:

2

processing temperature:

-5 +40 C

protection class:

IP40

rated current:

16 A

rated current ul 1977:

14 A

rated surge voltage iii 3:

4 kV

rated voltage ul 1977:

600 V

ratings per:

IEC/EN 60664-1

retention force of a plug in connection:

Locked: > 80 N

solid conductor:

0.25 1.5 mm / 22 16 AWG

solid conductor push in termination:

0.75 1.5 mm / 20 16 AWG

strain relief:

Strain relief housing, short

stranded conductor:

0.25 1 mm / 22 18 AWG

strip length:

9 mm / 0.35 inch

strip length outer insulation:

17.5 mm

unmating force of a plug in connection:

Unlocked: approx. 20 70 N (depending on pole number)

weight:

4.750 g

width:

15.6 mm / 0.614 inch
