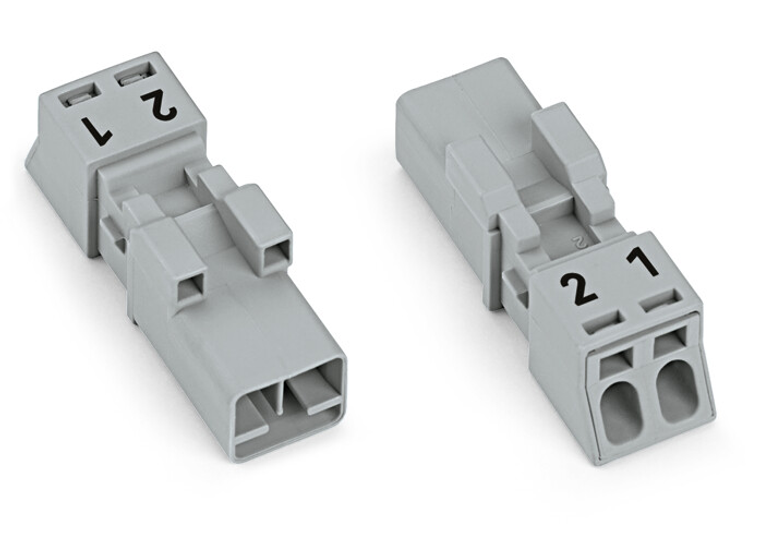

WAGO 890-252

(No reviews yet) Write a Review
SKU:
890-252
Condition:
New
  • Wago 890-252
  • Wago 890-252
$2.15

Description

Plug; 2-pole; 1,50 mm²; gray
View AllClose

Additional Information

actuation type:
Operating tool || Push-in
application:
Measurement and regulation technology
clamping spring material:
Chrome nickel spring steel (CrNi)
coding:
B
color:
Gray
conductor entry direction to mating direction:
0
connection technology:
Push-in CAGE CLAMP
connector connection type:
For conductor
contact material:
Copper or copper alloy (surface-treated)
contact type pluggable connector:
Male connector/plug
continuous operating temperature:
-35 +85 C
country of origin sales organisation germany:
PL
depth:
34.1 mm / 1.343 inch
fine stranded conductor:
0.25 1.5 mm / 22 16 AWG
fine stranded conductor with ferrule push in termination:
0.75 mm / 20 AWG
fine stranded conductor with insulated ferrule:
0.25 0.75 mm / 22 20 AWG
fine stranded conductor with uninsulated ferrule:
0.25 0.75 mm / 22 20 AWG
fire load:
0.057 MJ
height:
11.7 mm / 0.461 inch
insulation material:
Polyamide (PA66)
legend ratings:
(III / 3) Overvoltage category III / Pollution degree 3
locking lever:
Can be retrofitted
locking of plug in connection:
Locking lever
marking:
1 2
mating force of a plug in connection:
Approx. 20 70 N (depending on pole number)
mismating protection:
Yes
nominal cross section:
1.5 mm
nominal voltage iii 3:
250 V
note on continuous operating temperature:
Insulating parts for temperatures ¤ 105 C
note on mismating protection:
All WINSTA components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole
number of mating cycles:
200, without resistive load
packaging type:
Box
pin spacing:
4.4 mm / 0.173 inch
pole no:
2
processing temperature:
-5 +40 C
protection class:
IP20: IP40 when mated with strain relief housing
rated current:
16 A
rated current ul 1977:
14 A
rated surge voltage iii 3:
4 kV
rated voltage ul 1977:
600 V
ratings per:
IEC/EN 60664-1
retention force of a plug in connection:
Locked: > 80 N
solid conductor:
0.25 1.5 mm / 22 16 AWG
solid conductor push in termination:
0.75 1.5 mm / 20 16 AWG
stranded conductor:
0.25 1 mm / 22 18 AWG
strip length:
9 mm / 0.35 inch
unmating force of a plug in connection:
Unlocked: approx. 20 70 N (depending on pole number)
weight:
2.474 g
width:
10.4 mm / 0.409 inch
