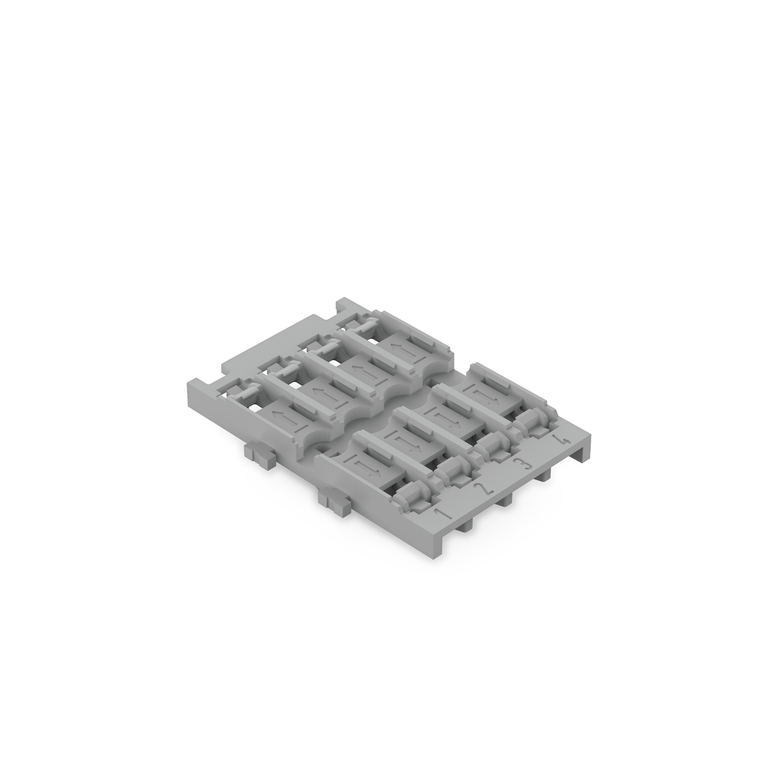

WAGO 221-2534 Mounting Carrier, 4-Way, Snap-In Foot, Gray, Pack of 5

The WAGO 221-2534 is a 4-way mounting carrier for 221 Series inline splicing connectors with levers, providing a secure mechanical retention and defined mounting interface for multi-pole inline terminations. It features a snap-in mounting foot for fast insertion into prepared cutouts or panels and is supplied in gray for easy identification in control cabinets and luminaires. The carrier has a compact footprint of 56 mm depth, 38.8 mm width, and 6.5 mm height from the mounting surface, with a very low fire load and a mass of approximately 5.84 g, making it suitable for dense assemblies and weight-sensitive OEM designs. Typical uses include mounting 221 inline connectors in lighting fixtures, control panels, junction boxes, and machinery where fixed routing and strain-relieved wiring are required. Mechanically, this carrier accommodates four inline 221 lever connectors; insertion orientation is fixed by the molded geometry to maintain consistent cable routing and access to test points on the connectors. The snap-in foot is designed to engage pre-punched sheet metal or similar structural elements, allowing tool-free installation and rapid module replacement in production environments. The product is part of the 221 series accessory family and is compatible with the same conductor ranges as the associated 221 inline splicing connectors (including solid, stranded and fine-stranded conductors in the 0.2–4 mm² class, depending on the connector variant installed). Low fire load (specified as 0.000 MJ) supports use in applications with stringent fire load calculations, such as building services and OEM equipment for transport or infrastructure. Documentation - Technical Datasheet – WAGO 221-2534 Mounting Carrier - `https://www.wago.com/us/wire-splicing-connectors/mounting-carrier/p/221-2534` - Installation and Mounting Instructions – 221 Inline Splicing Connectors and Mounting Carriers (incl. 221-2534) - `https://www.wago.com/us/medias/221-inline-splicing-connector-mounting-accessories-assembly-instructions-221-2534.pdf` - 221 Series Inline Splicing Connectors and Accessories Catalog Excerpt - `https://www.wago.com/us/catalog/221-inline-splicing-connectors-and-mounting-accessories.pdf` - CAD Data (2D/3D) – WAGO 221-2534 Mounting Carrier - `https://www.wago.com/us/cad/221-2534`
