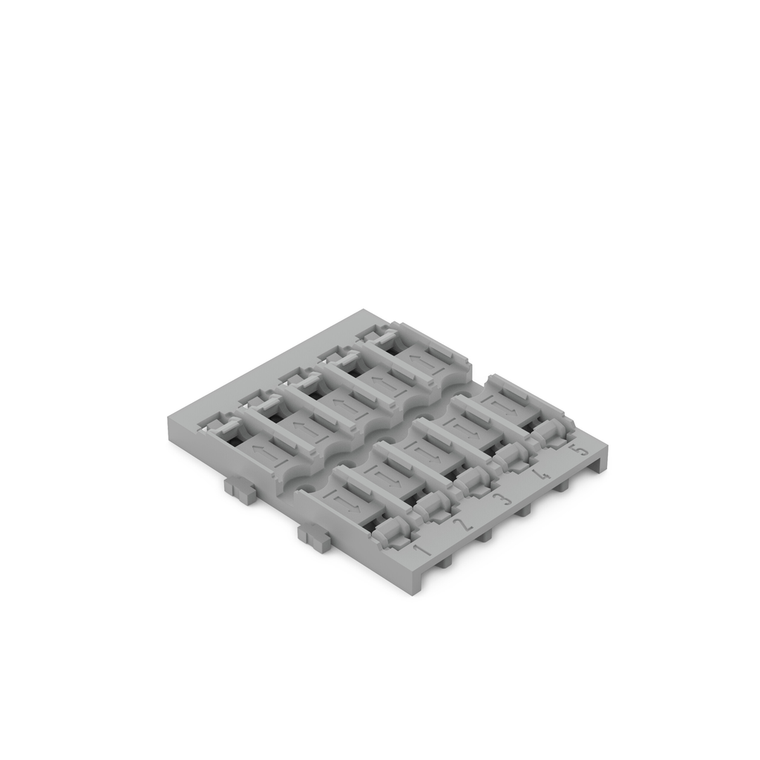

Wago 221-2525 Mounting Carrier 5-Way for 221 Series Inline Splicing Connector, Screw Mount, Gray, Pack of 5
Wago
$5.50
The WAGO 221-2525 is a 5-way mounting carrier designed to provide secure screw-mounted installation for WAGO's 221 series inline splicing connectors with lever operation. This component measures 47.8 mm × 6.5 mm × 56 mm and features a gray thermoplastic housing rated for 0.219 MJ fire load, meeting relevant electrical safety standards. The carrier enables fixed DIN-rail or panel-mount applications where modular inline splicing with lever-actuated connections is required, supporting efficient wire termination and maintenance in industrial control, machine building, and electrical distribution systems. Compatible exclusively with WAGO's 221 series connectors, it simplifies organized wiring layouts while maintaining compact form factor.
Documentation
- [Technical Datasheet](https://www.wago.com/us/products/221-2525/datasheet)
- [221 Series Product Family Overview](https://www.wago.com/us/products/221-series-inline-splicing-connectors)
- [3D CAD Models and ECAD Downloads](https://www.wago.com/us/products/221-2525/cad-downloads)
- [Installation and Mounting Guide](https://www.wago.com/us/products/221-2525/installation-guide)
- Color:
- Gray
- country of origin sales organisation germany:
- CN
- depth:
- 56 mm / 2.205 inch
- fire load:
- 0.000 MJ
- height from the surface:
- 6.5 mm / 0.256 inch
- packaging type:
- Box
- weight:
- 7.150 g
- width:
- 47.8 mm / 1.882 inch
