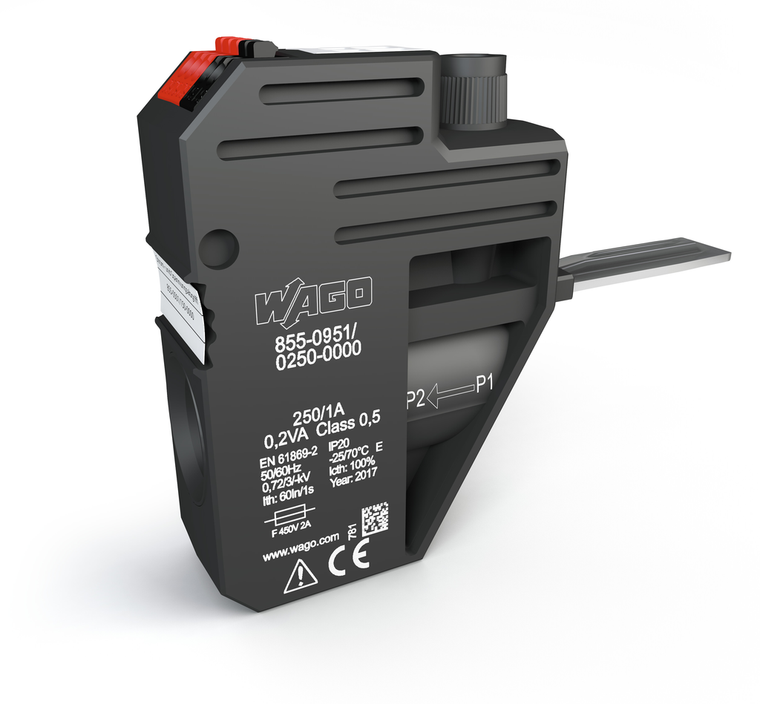

WAGO 855-951/250-000

(No reviews yet) Write a Review

Write a Review

×

WAGO 855-951/250-000

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

855-951/250-000

Condition:

New

accuracy class:

0.5

conformity marking:

CE

connection technology:

Push-in CAGE CLAMP

connection technology 2:

Push-in CAGE CLAMP

connection type 1:

Current output

connection type 2:

Voltage output

country of origin sales organisation germany:

NL

depth:

58 mm / 2.283 inch

feedthrough for measurement conductor:

¤ 16 mm

fine stranded conductor:

0.2 1.5 mm / 24 16 AWG

fine stranded conductor 2:

0.2 6 mm / 24 10 AWG

fire load:

0.000 MJ

flammability class per ul94:

V2

fuse voltage path:

2 A: 450 V: F: 70 kA: 5 x 25 mm (WAGO 855-8020)

height:

73 mm / 2.874 inch

housing material:

PA 66

mounting type:

Via 2-conductor high-current through terminal block's jumper slot

note:

Suitable for 2-conductor through terminal blocks for DIN-rail mounting (285-195: 285-194)Suitable for 2-conductor through terminal blocks with mounting flanges (285-181: 285-184)Spare fuse: WAGO 855-8020

operating altitude max:

2000 m

packaging type:

Box

primary rated current:

250 A

rated continuous thermal current icth:

250 A

rated frequency:

50 60 Hz

rated power sr:

0.2 VA

rated short time thermal current ith:

15 kA / 1 s

rated surge current idyn:

37.5 kA

rated voltage:

AC 400 V

relative humidity:

5 85 % (without condensation)

secondary rated current:

0.0416666666666667

solid conductor:

0.2 1.5 mm / 24 16 AWG

solid conductor 2:

0.2 6 mm / 24 10 AWG

standards specifications:

EN 61869-2 || EN 60947-7-3

strip length:

8.5 9.5 mm / 0.33 0.37 inch

strip length 2:

10 12 mm / 0.39 0.47 inch

surrounding air temperature operation:

-25 70 C

surrounding air temperature storage:

-25 70 C

test voltage:

AC 3 kV: 50 Hz: 1 min

vibration resistance:

10g (industry: 5 2000 Hz: per IEC 60068-2-6): 4g (ship: 5 150 Hz: per IEC 60068-2-6)

wago connector:

WAGO 250 Series

wago connector 2:

WAGO 2624 Series

weight:

98.000 g

width:

25 mm / 0.984 inch
