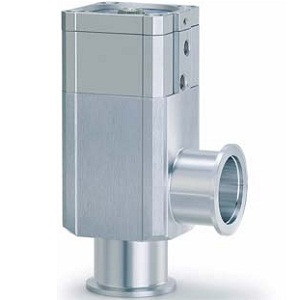

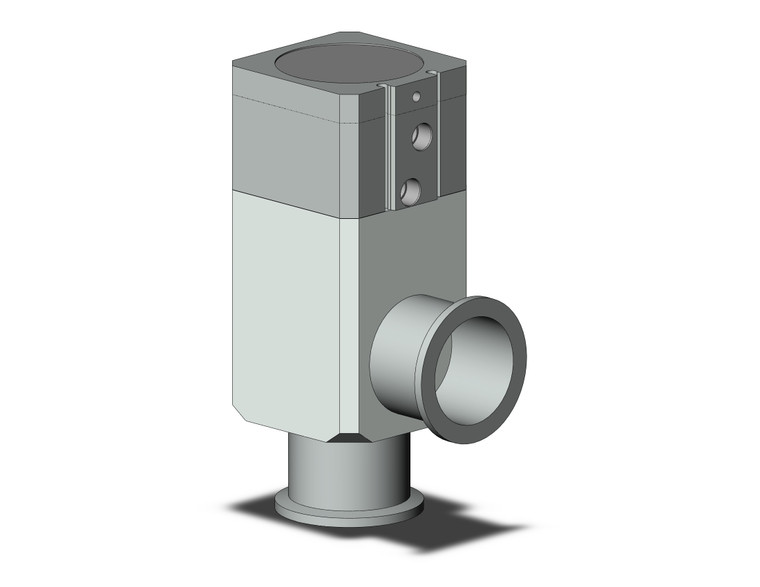

SMC XLD-40 Aluminum, High Vacuum Angle Valve
- SKU:
- XLD-40
- Condition:
- New
- Valve Type:
- Smooth Exhaust, Normally Closed, Bellows, O-ring Seal
- Flange Size:
- 40
- Flange Type:
- NW
- Port Direction:
- w/o Indicator, Flange Side, Std. Indicator, Flange Side
- Temperature:
- 5 to 60??C
- Flange Size Specification:
- Not Applicable
- Auto Switch:
- w/o Auto Switch and w/o Built-in Magnet
- Lead Wire:
- Or None in the Case of No Auto Switch
- Non-standard Indicator:
- Standard
- Body Surface Treatment:
- Standard: External - Hard Anodized, Internal - Raw Material
- Seal Material:
- 1349-80
Description
XLD, Aluminum High Vacuum Angle Valve, Air Operated
High vacuum angle valve series XL provides excellent thermal conductivity results in a uniform temperature for the entire valve body and a marked decrease in the condensation of gases inside the valve. The valve does not contain heavy metals such as Ni (nickel) or Cr (chrome) and a low sputtering yield also helps to minimize heavy metal contamination of semiconductor wafers.
- Light weight and compact- Uniform baking temperature
- High fluorine resistance
- Low outgassing
- Little heavy metal contamination
-
